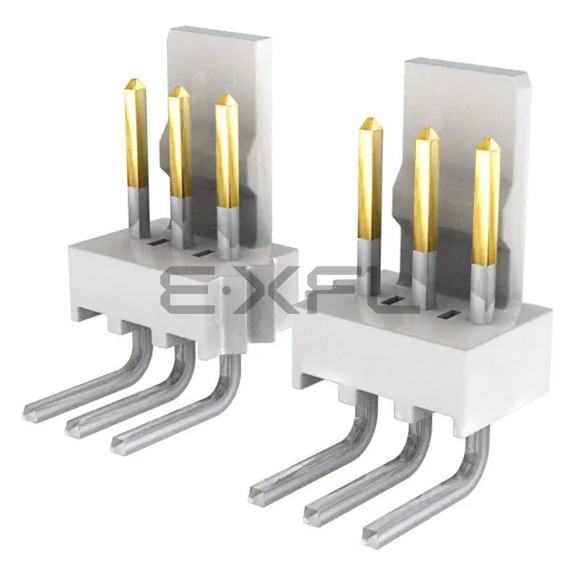

0022124122

Product details

Product Attributes

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 12
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 1 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Friction Lock
• Contact Length - Mating: 0.264" (6.70mm)
• Contact Length - Post: 0.150" (3.81mm)
• Overall Contact Length: -
• Insulation Height: 0.228" (5.80mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 20.0µin (0.51µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA66), Nylon 6/6
• Features: -
• Operating Temperature: -
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Current Rating (Amps): -
• Voltage Rating: -
