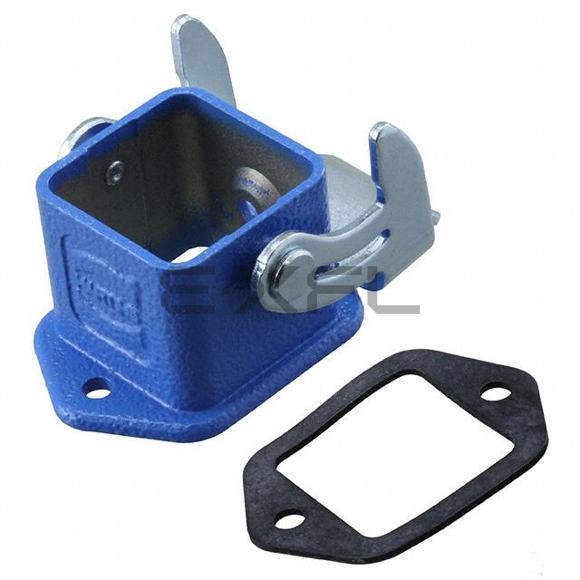

09200030310
Reference Price (USD)
09200030310
Product details
Featuring a Base - Panel Mount configuration, this interconnect solution ensures secure mating cycles while maintaining signal integrity across thousands of insertions. The design prevents accidental disconnection in high-vibration settings.
With Bottom Entry orientation options, engineers gain flexible installation possibilities for space-constrained applications. The multi-directional entry design simplifies cable routing in complex control panels.
The compact 3A footprint optimizes panel space utilization without compromising current-carrying capacity, achieving superior power density compared to conventional connectors.
Precision-engineered Locking Clip (1) on Base Bottom mechanism provides tactile feedback during mating, while the positive locking system exceeds IEC 61076 standards for mechanical endurance.
Measuring 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm), the housing geometry incorporates strain relief features that minimize bending stress on terminated conductors, extending cable assembly lifespan.
Blue finish provides high visibility in low-light conditions while meeting industry-standard color coding requirements for quick identification.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount
- Style: Bottom Entry
- Size: 3A
- Lock Location: Locking Clip (1) on Base Bottom
- Thread Size: -
- Size / Dimension: 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)
- Housing Color: Blue
- Features: -
- Ingress Protection: -
- Housing Material: -
- Housing Finish: -
- Operating Temperature: -
