09300480301
HARTING
09300480301
HARTING

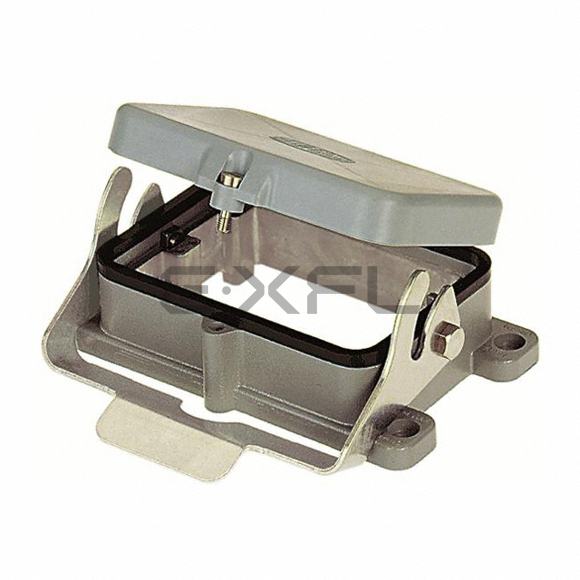

CONN BASE BOTTOM ENTRY SZ48B
Reference Price (USD)
1+
$145.70000
500+
$144.243
1000+
$142.786
1500+
$141.329
2000+
$139.872
2500+
$138.415
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
09300480301
$145.70
Product details
Designed for next-generation electric vehicles, the 09300480301 from HARTING delivers robust performance in Heavy Duty Connectors - Housings, Hoods, Bases for high-voltage battery systems. This automotive-grade solution meets stringent ISO 6469 and LV214 standards for electrified powertrains.<p>The Base - Panel Mount architecture incorporates arc-flash prevention technology that safely breaks 800V DC circuits under load conditions.</p><p>With Bottom Entry configuration, the HVIL (High Voltage Interlock Loop) system ensures proper sequencing during connection and disconnection.</p><p>Optimized 48B dimensions accommodate 600A continuous current while providing 15mm creepage distance for 1000V applications.</p><p>The safety-interlocked Locking Clip (1) on Base Bottom mechanism prevents access to live contacts during maintenance operations.</p><p>Engineered to 6.496" L x 3.780" W x 1.575" H (165.00mm x 96.00mm x 40.00mm) specifications, the connector withstands 50G mechanical shock per ISO 16750-3.</p><p>High-visibility Gray provides clear identification of high-voltage components per SAE J2340.</p><p>IP65 - Dust Tight, Water Resistant rating ensures reliable operation when exposed to road spray and pressure washing in underbody locations.</p><p>Halogen-free Aluminum, Die Cast meets UL94 V-0 flammability requirements while minimizing toxic fume emission.</p><p>Advanced Powder Coated provides UV stability for exterior-mounted charge ports without color fading.</p><p>Rated for -40°C ~ 125°C range, the connector maintains stable contact resistance during extreme fast-charging cycles.</p>
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount
- Style: Bottom Entry
- Size: 48B
- Lock Location: Locking Clip (1) on Base Bottom
- Thread Size: -
- Size / Dimension: 6.496" L x 3.780" W x 1.575" H (165.00mm x 96.00mm x 40.00mm)
- Housing Color: Gray
- Features: -
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
