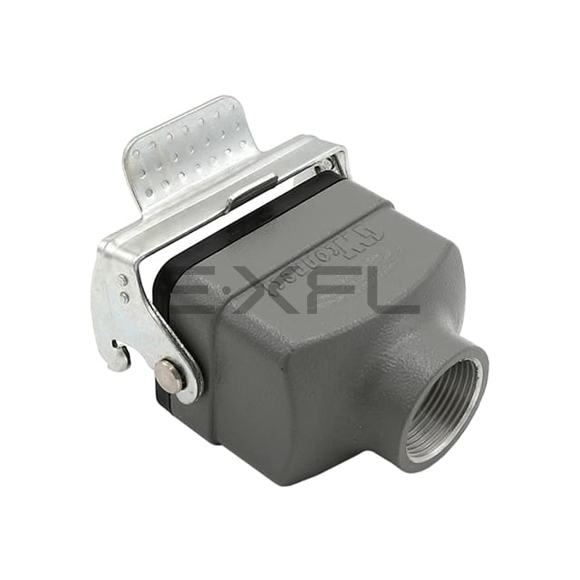

0936010909
Molex
0936010909
Molex
CONN HOOD TOP ENTRY SZ6B PG16
Reference Price (USD)
1+
$29.97100
500+
$29.67129
1000+
$29.37158
1500+
$29.07187
2000+
$28.77216
2500+
$28.47245
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
0936010909
$29.97
Product details
Designed for next-generation electric vehicles, the 0936010909 from Molex delivers robust performance in Heavy Duty Connectors - Housings, Hoods, Bases for high-voltage battery systems. This automotive-grade solution meets stringent ISO 6469 and LV214 standards for electrified powertrains.<p>The Hood architecture incorporates arc-flash prevention technology that safely breaks 800V DC circuits under load conditions.</p><p>With Top Entry configuration, the HVIL (High Voltage Interlock Loop) system ensures proper sequencing during connection and disconnection.</p><p>Optimized 6B dimensions accommodate 600A continuous current while providing 15mm creepage distance for 1000V applications.</p><p>The safety-interlocked Locking Clip (1) on Hood mechanism prevents access to live contacts during maintenance operations.</p><p>The PG16 interface incorporates corrosion-resistant plating that withstands 1000 hours of salt spray testing.</p><p>Engineered to 2.362" L x 1.713" W x 2.323" H (60.00mm x 43.50mm x 59.00mm) specifications, the connector withstands 50G mechanical shock per ISO 16750-3.</p><p>IP66 - Dust Tight, Water Resistant rating ensures reliable operation when exposed to road spray and pressure washing in underbody locations.</p><p>Halogen-free Aluminum Alloy, Die Cast meets UL94 V-0 flammability requirements while minimizing toxic fume emission.</p><p>Advanced Powder Coated provides UV stability for exterior-mounted charge ports without color fading.</p><p>Rated for -40°C ~ 125°C range, the connector maintains stable contact resistance during extreme fast-charging cycles.</p>
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Top Entry
- Size: 6B
- Lock Location: Locking Clip (1) on Hood
- Thread Size: PG16
- Size / Dimension: 2.362" L x 1.713" W x 2.323" H (60.00mm x 43.50mm x 59.00mm)
- Housing Color: -
- Features: -
- Ingress Protection: IP66 - Dust Tight, Water Resistant
- Housing Material: Aluminum Alloy, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
