0936013138
Reference Price (USD)
0936013138

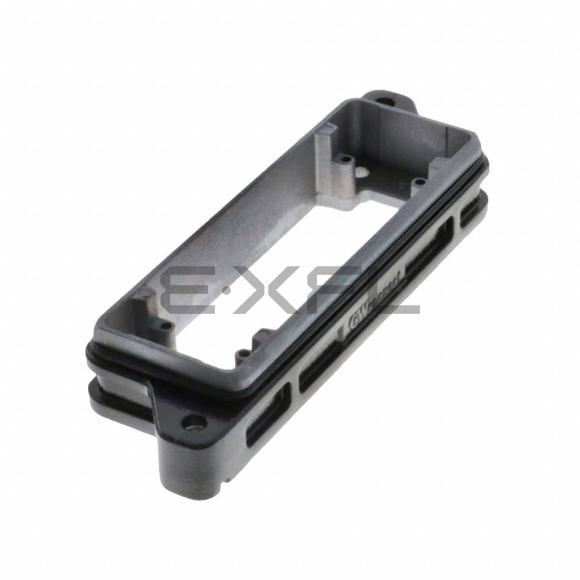

Product details
The Base - Panel Mount configuration features hermetic sealing technology that maintains <1x10^-9 atm-cc/sec helium leak rate, suitable for vacuum chamber applications.
With Bottom Entry architecture, the connector supports blind-mate capabilities with 2mm alignment tolerance, critical for rapid field deployment scenarios.
Despite its compact 24B dimensions, the connector withstands 50G shock loads and 20G vibration per MIL-STD-202 standards.
The fail-safe Screw Locks on Hood design includes secondary retention that prevents accidental release under explosive decompression conditions.
Precision-machined to 7.598" L x 2.283" W x 1.142" H (193.00mm x 58.00mm x 29.00mm) specifications, the connector maintains impedance stability within 2% across all mated pairs.
Low-observable Black meets strict reflectivity requirements for stealth applications while maintaining visibility for maintenance.
IP68/IP69 - Dust Tight, Waterproof performance includes validation for salt fog exposure per MIL-STD-810 Method 509, ensuring operation in naval environments.
High-strength Zinc Alloy composition provides RFI/EMI shielding effectiveness exceeding 90dB up to 18GHz frequency range.
Advanced Epoxy Powder Paint provides tribological properties that reduce mating force while preventing cold welding in space applications.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount
- Style: Bottom Entry
- Size: 24B
- Lock Location: Screw Locks on Hood
- Thread Size: -
- Size / Dimension: 7.598" L x 2.283" W x 1.142" H (193.00mm x 58.00mm x 29.00mm)
- Housing Color: Black
- Features: -
- Ingress Protection: IP68/IP69 - Dust Tight, Waterproof
- Housing Material: Zinc Alloy
- Housing Finish: Epoxy Powder Paint
- Operating Temperature: -
