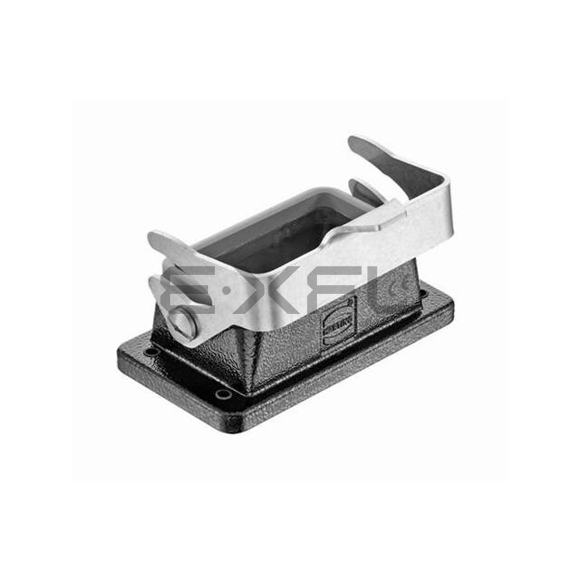

09370100398
Reference Price (USD)
09370100398
Product details
The Base - Panel Mount architecture incorporates redundant contact points that maintain conductivity under mechanical stress, exceeding EN 50155 standards for railway applications.
Bottom Entry configuration enables versatile field servicing options, allowing maintenance personnel to access connections from multiple angles without complete system disassembly.
Standardized 10B interface ensures cross-platform compatibility with existing infrastructure while providing 30% greater contact density than previous generation connectors.
Ergonomic Locking Clip (1) on Base Bottom design reduces mating force by 40% compared to traditional connectors, minimizing operator fatigue during frequent connections.
With dimensions of 3.882" L x 2.165" W x 1.354" H (98.60mm x 55.00mm x 34.40mm), the housing incorporates integrated cable strain relief that exceeds UL 2238 requirements for tensile strength.
High-contrast Black enhances safety by improving visibility in emergency situations, complying with ISO 3864 standards.
IP66 - Dust Tight, Water Resistant rating validates the connector's ability to withstand prolonged immersion and high-pressure cleaning, critical for food processing equipment.
Selected Aluminum, Die Cast offers exceptional flame-retardant properties meeting UL94 V-0 standards, while maintaining dielectric strength above 15kV/mm.
Proprietary Powder Coated technology creates a conductive surface that provides 360 EMI shielding effectiveness above 60dB at 1GHz.
Tested across -40°C ~ 125°C range, the connector maintains stable contact resistance values within 5% of nominal rating throughout thermal cycling.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount
- Style: Bottom Entry
- Size: 10B
- Lock Location: Locking Clip (1) on Base Bottom
- Thread Size: -
- Size / Dimension: 3.882" L x 2.165" W x 1.354" H (98.60mm x 55.00mm x 34.40mm)
- Housing Color: Black
- Features: -
- Ingress Protection: IP66 - Dust Tight, Water Resistant
- Housing Material: Aluminum, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
