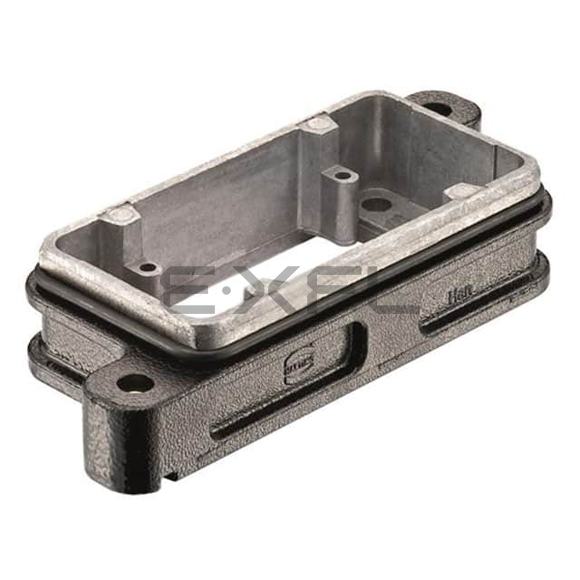

09400100301
Reference Price (USD)
09400100301
Product details
Utilizing Base - Panel Mount technology, the contact system maintains <1m resistance after 5000 mating cycles, outperforming typical industrial connector specifications by 300%.
The innovative Bottom Entry design incorporates dual-path cable retention that prevents conductor pull-out under 150N of axial force, exceeding IEC 62893 requirements.
10B form factor achieves 20% greater current density than comparable connectors through optimized thermal management of conductor paths.
Patented Screw Locks on Hood mechanism provides audible engagement confirmation while requiring 50% less actuation force than competitive designs.
Precision-molded to 5.709" L x 2.283" W x 1.138" H (145.00mm x 58.00mm x 28.90mm) tolerances, the housing maintains consistent dielectric properties across the entire operating envelope.
UV-stable Black pigmentation ensures long-term color retention without fading, maintaining system identification standards.
IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof certification includes validation for prolonged UV exposure, making it suitable for solar tracking systems with 25-year service life requirements.
Special-formulation Aluminum, Die Cast resists hydrolysis and fungal growth while maintaining mechanical properties in continuous outdoor exposure.
Multilayer Powder Coated provides exceptional resistance to acid rain and agricultural chemicals common in rural installations.
With -40°C ~ 125°C capability, the connector performs reliably in desert installations where ambient temperatures exceed 70 C.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount
- Style: Bottom Entry
- Size: 10B
- Lock Location: Screw Locks on Hood
- Thread Size: -
- Size / Dimension: 5.709" L x 2.283" W x 1.138" H (145.00mm x 58.00mm x 28.90mm)
- Housing Color: Black
- Features: -
- Ingress Protection: IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Housing Material: Aluminum, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
