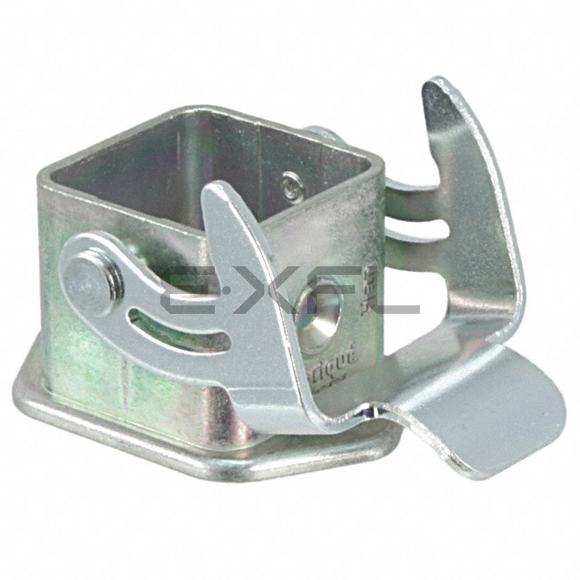

09620030304
Reference Price (USD)
09620030304
Product details
Featuring a Base - Panel Mount configuration, this interconnect solution ensures secure mating cycles while maintaining signal integrity across thousands of insertions. The design prevents accidental disconnection in high-vibration settings.
With Bottom Entry orientation options, engineers gain flexible installation possibilities for space-constrained applications. The multi-directional entry design simplifies cable routing in complex control panels.
The compact 3A footprint optimizes panel space utilization without compromising current-carrying capacity, achieving superior power density compared to conventional connectors.
Precision-engineered Locking Clip (1) on Base Bottom mechanism provides tactile feedback during mating, while the positive locking system exceeds IEC 61076 standards for mechanical endurance.
Measuring 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm), the housing geometry incorporates strain relief features that minimize bending stress on terminated conductors, extending cable assembly lifespan.
IP44 certification guarantees reliable operation when exposed to pressurized water jets and airborne contaminants, meeting NEMA 4X requirements for outdoor installations.
Constructed from Zinc, Die Cast, the connector demonstrates exceptional resistance to chemical corrosion and UV degradation, maintaining mechanical properties across the operating temperature spectrum.
Advanced EMC Coating process creates a micro-textured surface that enhances grip during installation while providing superior resistance to scratches and abrasion.
Rated for -40°C ~ 125°C range, the thermal management design prevents performance degradation in extreme climates from arctic cold to desert heat.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount
- Style: Bottom Entry
- Size: 3A
- Lock Location: Locking Clip (1) on Base Bottom
- Thread Size: -
- Size / Dimension: 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)
- Housing Color: -
- Features: -
- Ingress Protection: IP44
- Housing Material: Zinc, Die Cast
- Housing Finish: EMC Coating
- Operating Temperature: -40°C ~ 125°C
