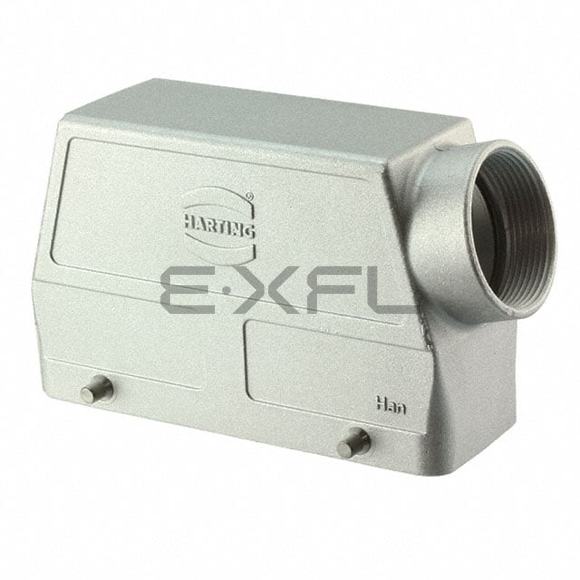

09628240521
Reference Price (USD)
09628240521
Product details
The Hood configuration features hermetic sealing technology that maintains <1x10^-9 atm-cc/sec helium leak rate, suitable for vacuum chamber applications.
With Side Entry architecture, the connector supports blind-mate capabilities with 2mm alignment tolerance, critical for rapid field deployment scenarios.
Despite its compact 24B dimensions, the connector withstands 50G shock loads and 20G vibration per MIL-STD-202 standards.
The fail-safe Locking Clip (2) on Base Bottom design includes secondary retention that prevents accidental release under explosive decompression conditions.
The PG29 interface incorporates anti-FOD features that prevent loose debris generation during repeated mating cycles.
Precision-machined to 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm) specifications, the connector maintains impedance stability within 2% across all mated pairs.
IP65 - Dust Tight, Water Resistant performance includes validation for salt fog exposure per MIL-STD-810 Method 509, ensuring operation in naval environments.
High-strength Aluminum, Die Cast composition provides RFI/EMI shielding effectiveness exceeding 90dB up to 18GHz frequency range.
Qualified for -40°C ~ 125°C extremes, the connector maintains signal integrity during rapid thermal transients up to 10 C/minute.
Product Attributes
- Product Status: Last Time Buy
- Connector Type: Hood
- Style: Side Entry
- Size: 24B
- Lock Location: Locking Clip (2) on Base Bottom
- Thread Size: PG29
- Size / Dimension: 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm)
- Housing Color: -
- Features: -
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum, Die Cast
- Housing Finish: -
- Operating Temperature: -40°C ~ 125°C
