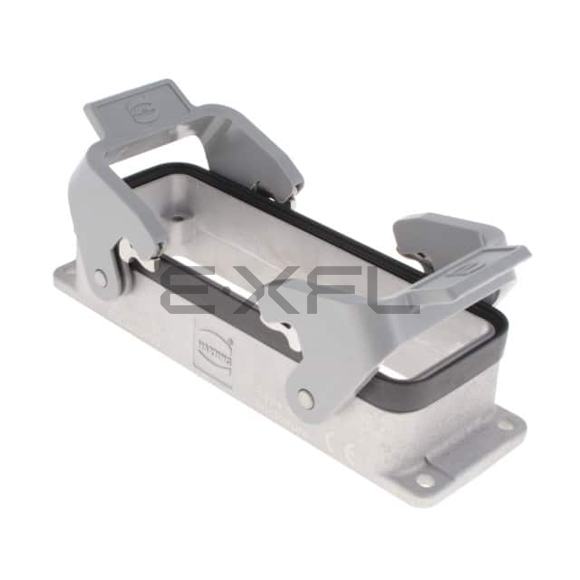

09628242301
Reference Price (USD)
09628242301
Product details
Utilizing Base - Panel Mount technology, the contact system maintains <1m resistance after 5000 mating cycles, outperforming typical industrial connector specifications by 300%.
The innovative Bottom Entry design incorporates dual-path cable retention that prevents conductor pull-out under 150N of axial force, exceeding IEC 62893 requirements.
24B form factor achieves 20% greater current density than comparable connectors through optimized thermal management of conductor paths.
Patented Locking Clip (2) on Base Bottom mechanism provides audible engagement confirmation while requiring 50% less actuation force than competitive designs.
Precision-molded to 5.512" L x 1.732" W x 1.177" H (140.00mm x 44.00mm x 29.90mm) tolerances, the housing maintains consistent dielectric properties across the entire operating envelope.
IP66 - Dust Tight, Water Resistant certification includes validation for prolonged UV exposure, making it suitable for solar tracking systems with 25-year service life requirements.
Special-formulation Aluminum, Die Cast resists hydrolysis and fungal growth while maintaining mechanical properties in continuous outdoor exposure.
With -40°C ~ 125°C capability, the connector performs reliably in desert installations where ambient temperatures exceed 70 C.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount
- Style: Bottom Entry
- Size: 24B
- Lock Location: Locking Clip (2) on Base Bottom
- Thread Size: -
- Size / Dimension: 5.512" L x 1.732" W x 1.177" H (140.00mm x 44.00mm x 29.90mm)
- Housing Color: -
- Features: -
- Ingress Protection: IP66 - Dust Tight, Water Resistant
- Housing Material: Aluminum, Die Cast
- Housing Finish: -
- Operating Temperature: -40°C ~ 125°C
