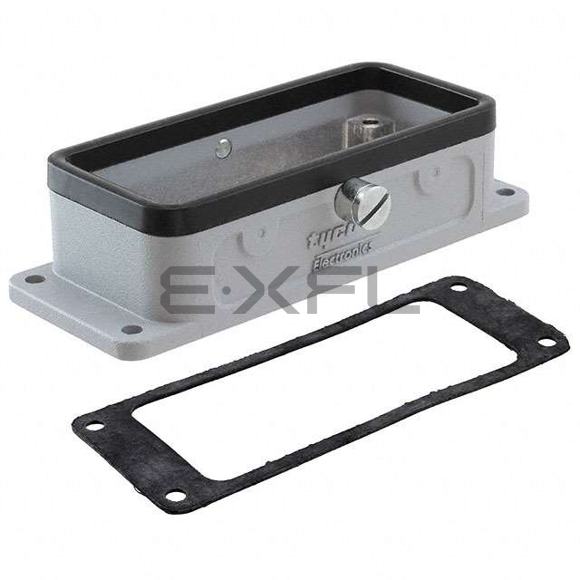

1-1102296-8
Reference Price (USD)
1-1102296-8
Product details
Featuring a Base - Panel Mount configuration, this interconnect solution ensures secure mating cycles while maintaining signal integrity across thousands of insertions. The design prevents accidental disconnection in high-vibration settings.
With Bottom Entry orientation options, engineers gain flexible installation possibilities for space-constrained applications. The multi-directional entry design simplifies cable routing in complex control panels.
The compact 6 footprint optimizes panel space utilization without compromising current-carrying capacity, achieving superior power density compared to conventional connectors.
Precision-engineered Locking Clip (1) on Hood mechanism provides tactile feedback during mating, while the positive locking system exceeds IEC 61076 standards for mechanical endurance.
Measuring 4.449" L x 1.713" W x 1.122" H (113.00mm x 43.50mm x 28.50mm), the housing geometry incorporates strain relief features that minimize bending stress on terminated conductors, extending cable assembly lifespan.
Gray finish provides high visibility in low-light conditions while meeting industry-standard color coding requirements for quick identification.
IP65 - Dust Tight, Water Resistant certification guarantees reliable operation when exposed to pressurized water jets and airborne contaminants, meeting NEMA 4X requirements for outdoor installations.
Constructed from Aluminum Alloy, Die Cast, the connector demonstrates exceptional resistance to chemical corrosion and UV degradation, maintaining mechanical properties across the operating temperature spectrum.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount
- Style: Bottom Entry
- Size: 6
- Lock Location: Locking Clip (1) on Hood
- Thread Size: -
- Size / Dimension: 4.449" L x 1.713" W x 1.122" H (113.00mm x 43.50mm x 28.50mm)
- Housing Color: Gray
- Features: -
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum Alloy, Die Cast
- Housing Finish: -
- Operating Temperature: -
