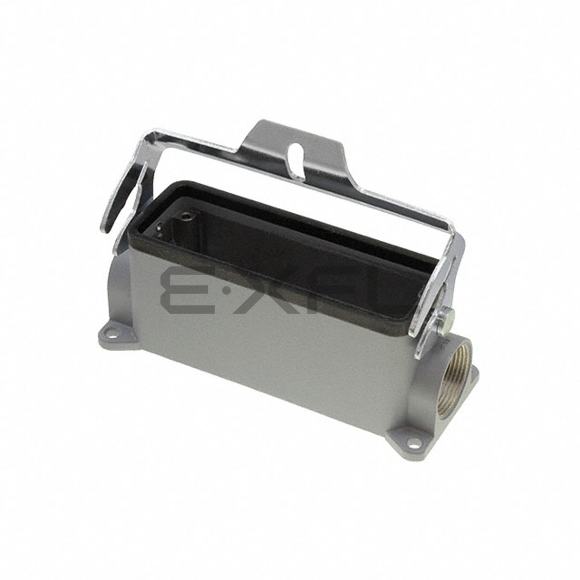

1-1102333-2
Reference Price (USD)
1-1102333-2
Product details
Featuring a Base - Box Mount configuration, this interconnect solution ensures secure mating cycles while maintaining signal integrity across thousands of insertions. The design prevents accidental disconnection in high-vibration settings.
With Side Entry orientation options, engineers gain flexible installation possibilities for space-constrained applications. The multi-directional entry design simplifies cable routing in complex control panels.
The compact 8 footprint optimizes panel space utilization without compromising current-carrying capacity, achieving superior power density compared to conventional connectors.
Precision-engineered Locking Clip (2) on Base Bottom mechanism provides tactile feedback during mating, while the positive locking system exceeds IEC 61076 standards for mechanical endurance.
The PG21 interface incorporates anti-cross-threading features that prevent damage during blind mating operations, reducing maintenance downtime.
Measuring 5.669" L x 2.244" W x 2.185" H (144.00mm x 57.00mm x 55.50mm), the housing geometry incorporates strain relief features that minimize bending stress on terminated conductors, extending cable assembly lifespan.
Gray finish provides high visibility in low-light conditions while meeting industry-standard color coding requirements for quick identification.
Feed Through capabilities address specific application challenges, including electromagnetic compatibility and salt fog exposure common in marine and offshore installations.
IP65 - Dust Tight, Water Resistant certification guarantees reliable operation when exposed to pressurized water jets and airborne contaminants, meeting NEMA 4X requirements for outdoor installations.
Constructed from Aluminum, Die Cast, the connector demonstrates exceptional resistance to chemical corrosion and UV degradation, maintaining mechanical properties across the operating temperature spectrum.
Advanced Powder Coated process creates a micro-textured surface that enhances grip during installation while providing superior resistance to scratches and abrasion.
Product Attributes
- Product Status: Active
- Connector Type: Base - Box Mount
- Style: Side Entry
- Size: 8
- Lock Location: Locking Clip (2) on Base Bottom
- Thread Size: PG21
- Size / Dimension: 5.669" L x 2.244" W x 2.185" H (144.00mm x 57.00mm x 55.50mm)
- Housing Color: Gray
- Features: Feed Through
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -
