11200030300
Reference Price (USD)
11200030300

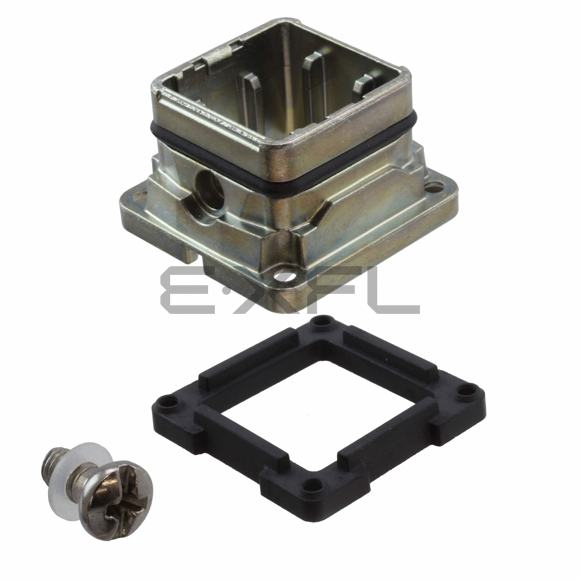

Product details
Featuring a Base - Panel Mount configuration, this interconnect solution ensures secure mating cycles while maintaining signal integrity across thousands of insertions. The design prevents accidental disconnection in high-vibration settings.
With Bottom Entry orientation options, engineers gain flexible installation possibilities for space-constrained applications. The multi-directional entry design simplifies cable routing in complex control panels.
Precision-engineered Push Button Snap Lock on Hood mechanism provides tactile feedback during mating, while the positive locking system exceeds IEC 61076 standards for mechanical endurance.
Measuring 1.563" L x 1.563" W x 0.978" H (39.70mm x 39.69mm x 24.85mm), the housing geometry incorporates strain relief features that minimize bending stress on terminated conductors, extending cable assembly lifespan.
IP65 - Dust Tight, Water Resistant certification guarantees reliable operation when exposed to pressurized water jets and airborne contaminants, meeting NEMA 4X requirements for outdoor installations.
Constructed from Zinc, Die Cast, the connector demonstrates exceptional resistance to chemical corrosion and UV degradation, maintaining mechanical properties across the operating temperature spectrum.
Advanced Zinc Passivation process creates a micro-textured surface that enhances grip during installation while providing superior resistance to scratches and abrasion.
Rated for -40°C ~ 125°C range, the thermal management design prevents performance degradation in extreme climates from arctic cold to desert heat.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount
- Style: Bottom Entry
- Size: -
- Lock Location: Push Button Snap Lock on Hood
- Thread Size: -
- Size / Dimension: 1.563" L x 1.563" W x 0.978" H (39.70mm x 39.69mm x 24.85mm)
- Housing Color: -
- Features: -
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Zinc, Die Cast
- Housing Finish: Zinc Passivation
- Operating Temperature: -40°C ~ 125°C
