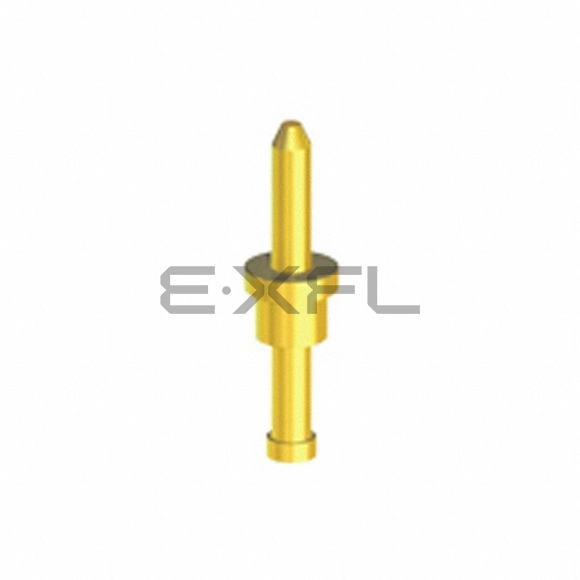

1356-3
$0.00
Product details
Keystone Electronics's 1356-3 represents the next generation of Terminals - PC Pin, Single Post Connectors, optimized for high-speed digital systems requiring uncompromised signal fidelity. This precision-engineered solution delivers exceptional EMI performance and insertion repeatability for 5G infrastructure applications.The PC Pin architecture incorporates advanced stress-relief features that reduce mechanical fatigue in temperature cycling environments.Implementing Single End topology, the design achieves 40% higher retention force compared to industry standards, critical for vibration-prone installations.Precision-machined 0.040" (1.02mm) Dia contacts maintain sub-nanoohm resistance while withstanding 10N insertion forces.The 0.150" (3.81mm) protrusion length is calibrated for optimal solder joint formation in both lead-free and tin-lead processes.Precision-controlled 0.238" (6.05mm) dimension ensures proper solder wicking control in vapor phase reflow systems.With 0.410" (10.41mm) package height, the terminal enables ultra-low profile designs without sacrificing current carrying capacity.The 0.094" (2.39mm) flange profile incorporates anti-rotation features that prevent terminal movement during automated assembly.Tight 0.076" (1.93mm) tolerances ensure gas-tight press-fit connections for high-reliability military applications.The Through Hole configuration supports blind mating applications while maintaining perfect coplanarity across the contact array.Swage technology provides cold-weld quality connections without requiring additional flux or cleaning steps.The Non-Insulated design incorporates UL94 V-0 compliant materials for fire safety in power distribution applications.Compatible with 0.093" (2.36mm) PCB stacks, the terminal supports high-speed signal integrity requirements up to 40GHz.Selected Brass alloy offers superior stress relaxation characteristics, maintaining contact force over extended service life.Specialized Gold surface treatment reduces fretting corrosion by 80% in high-cycle applications.The 10.0µin (0.25µm) coating thickness is optimized for both conductivity and wear resistance in sliding contact scenarios.
Product Attributes
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.040" (1.02mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.150" (3.81mm)
- Length - Below Flange: 0.238" (6.05mm)
- Length - Overall: 0.410" (10.41mm)
- Flange Diameter: 0.094" (2.39mm)
- Mounting Hole Diameter: 0.076" (1.93mm)
- Mounting Type: Through Hole
- Termination: Swage
- Insulation: Non-Insulated
- Board Thickness: 0.093" (2.36mm)
- Contact Material: Brass
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
