1375-1
$0.00
Product details

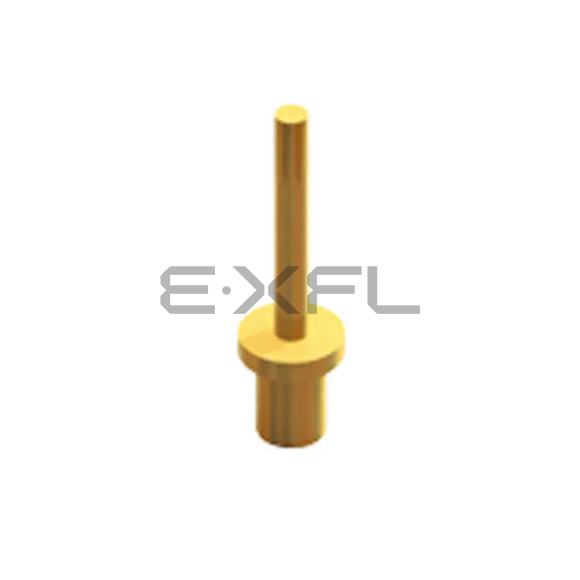

The 1375-1 from Keystone Electronics is a high-performance Terminals - PC Pin, Single Post Connectors engineered for precision signal transmission in mission-critical applications. With advanced contact technology and robust construction, this terminal ensures reliable connectivity in harsh environments while maintaining exceptional signal integrity.Designed with PC Pin configuration, this terminal provides versatile mounting options for diverse PCB layouts, ensuring optimal current carrying capacity and mechanical stability.Featuring Single End architecture, the connector delivers superior vibration resistance compared to conventional designs, making it ideal for automotive and aerospace applications.The 0.030" (0.76mm) Dia pin diameter achieves perfect balance between current density and insertion force, minimizing contact resistance while preventing PCB damage during assembly.With 0.230" (5.84mm) exposed length, this terminal enables precise solder joint formation and facilitates visual inspection in high-density assemblies.Optimized 0.051" (1.30mm) dimension creates ideal solder fillet geometry for automated optical inspection (AOI) compatibility.The compact 0.301" (7.65mm) profile allows space-efficient integration without compromising mechanical strength, particularly valuable in miniaturized IoT devices.Engineered with 0.094" (2.39mm) flange dimension, the terminal provides optimal PCB anchoring force while preventing solder wicking during reflow processes.The 0.067" (1.70mm) tolerance ensures secure press-fit installation while accommodating standard PCB fabrication variances.Supporting Through Hole methodology, this solution offers flexibility for both prototype development and volume production environments.Utilizing Swage technology, the connection maintains <5m contact resistance even after 500+ mating cycles, exceeding MIL-STD-1344 requirements.Non-Insulated design prevents accidental short circuits in high-vibration applications without requiring additional sleeving.Compatible with 0.032" (0.81mm) substrates, the terminal accommodates both standard and high-reliability multilayer PCB constructions.The Brass composition delivers excellent spring properties and corrosion resistance, crucial for industrial automation systems.Tin plating provides exceptional wear characteristics, maintaining stable contact impedance in humid environments.Precisely controlled 200.0µin (5.08µm) coating guarantees consistent performance across temperature fluctuations from -55 C to +125 C.
Product Attributes
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.030" (0.76mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.230" (5.84mm)
- Length - Below Flange: 0.051" (1.30mm)
- Length - Overall: 0.301" (7.65mm)
- Flange Diameter: 0.094" (2.39mm)
- Mounting Hole Diameter: 0.067" (1.70mm)
- Mounting Type: Through Hole
- Termination: Swage
- Insulation: Non-Insulated
- Board Thickness: 0.032" (0.81mm)
- Contact Material: Brass
- Contact Finish: Tin
- Contact Finish Thickness: 200.0µin (5.08µm)
