1420902
Reference Price (USD)
1420902

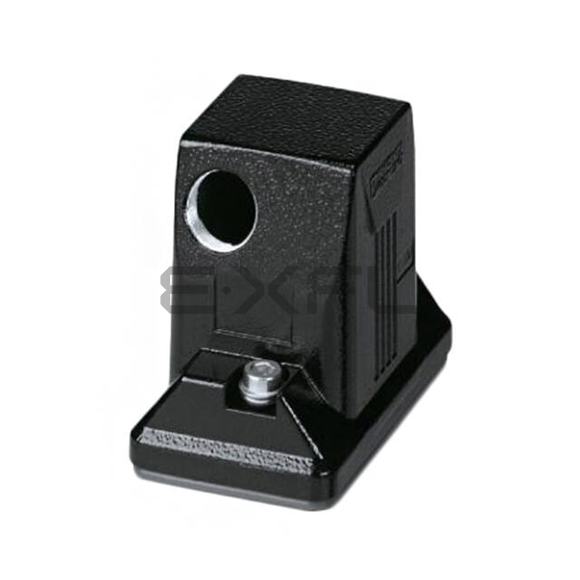

Product details
Featuring a Hood configuration, this interconnect solution ensures secure mating cycles while maintaining signal integrity across thousands of insertions. The design prevents accidental disconnection in high-vibration settings.
With Side Entry orientation options, engineers gain flexible installation possibilities for space-constrained applications. The multi-directional entry design simplifies cable routing in complex control panels.
The compact B6 footprint optimizes panel space utilization without compromising current-carrying capacity, achieving superior power density compared to conventional connectors.
Precision-engineered Screw Locks on Hood mechanism provides tactile feedback during mating, while the positive locking system exceeds IEC 61076 standards for mechanical endurance.
The M20 interface incorporates anti-cross-threading features that prevent damage during blind mating operations, reducing maintenance downtime.
Measuring 3.622" L x 2.244" W x 2.913" H (92.00mm x 57.00mm x 74.00mm), the housing geometry incorporates strain relief features that minimize bending stress on terminated conductors, extending cable assembly lifespan.
Black finish provides high visibility in low-light conditions while meeting industry-standard color coding requirements for quick identification.
Salt Water Resistant capabilities address specific application challenges, including electromagnetic compatibility and salt fog exposure common in marine and offshore installations.
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof certification guarantees reliable operation when exposed to pressurized water jets and airborne contaminants, meeting NEMA 4X requirements for outdoor installations.
Constructed from Aluminum, Die Cast, the connector demonstrates exceptional resistance to chemical corrosion and UV degradation, maintaining mechanical properties across the operating temperature spectrum.
Advanced Powder Coated process creates a micro-textured surface that enhances grip during installation while providing superior resistance to scratches and abrasion.
Rated for -40°C ~ 125°C range, the thermal management design prevents performance degradation in extreme climates from arctic cold to desert heat.
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Side Entry
- Size: B6
- Lock Location: Screw Locks on Hood
- Thread Size: M20
- Size / Dimension: 3.622" L x 2.244" W x 2.913" H (92.00mm x 57.00mm x 74.00mm)
- Housing Color: Black
- Features: Salt Water Resistant
- Ingress Protection: IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Housing Material: Aluminum, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
