1420932
Reference Price (USD)
1420932

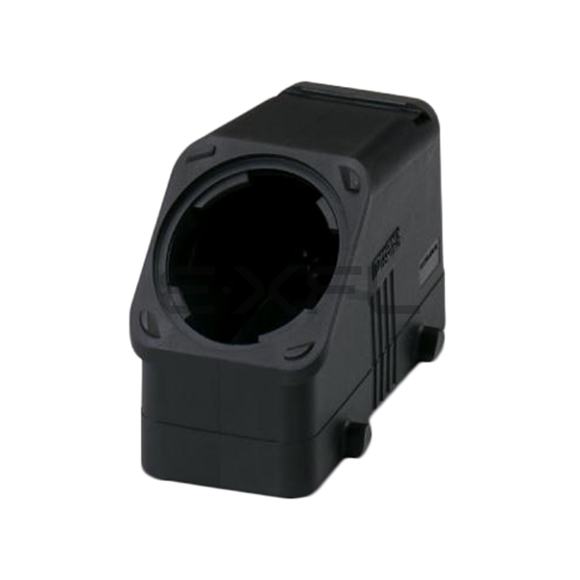

Product details
The Hood configuration features hermetic sealing technology that maintains <1x10^-9 atm-cc/sec helium leak rate, suitable for vacuum chamber applications.
With Side or Top Entry architecture, the connector supports blind-mate capabilities with 2mm alignment tolerance, critical for rapid field deployment scenarios.
Despite its compact B16 dimensions, the connector withstands 50G shock loads and 20G vibration per MIL-STD-202 standards.
The fail-safe Locking Clip (2) on Base Bottom design includes secondary retention that prevents accidental release under explosive decompression conditions.
Precision-machined to 3.681" L x 1.724" W x 2.480" H (93.50mm x 43.80mm x 63.00mm) specifications, the connector maintains impedance stability within 2% across all mated pairs.
Low-observable Black meets strict reflectivity requirements for stealth applications while maintaining visibility for maintenance.
IP66 - Dust Tight, Water Resistant performance includes validation for salt fog exposure per MIL-STD-810 Method 509, ensuring operation in naval environments.
High-strength Polyamide (PA), Nylon composition provides RFI/EMI shielding effectiveness exceeding 90dB up to 18GHz frequency range.
Qualified for -40°C ~ 125°C extremes, the connector maintains signal integrity during rapid thermal transients up to 10 C/minute.
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Side or Top Entry
- Size: B16
- Lock Location: Locking Clip (2) on Base Bottom
- Thread Size: -
- Size / Dimension: 3.681" L x 1.724" W x 2.480" H (93.50mm x 43.80mm x 63.00mm)
- Housing Color: Black
- Features: -
- Ingress Protection: IP66 - Dust Tight, Water Resistant
- Housing Material: Polyamide (PA), Nylon
- Housing Finish: -
- Operating Temperature: -40°C ~ 125°C
