19300160297
Reference Price (USD)
19300160297

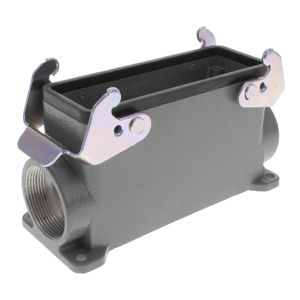

Product details
The Base - Box Mount configuration features hermetic sealing technology that maintains <1x10^-9 atm-cc/sec helium leak rate, suitable for vacuum chamber applications.
With Side Entry architecture, the connector supports blind-mate capabilities with 2mm alignment tolerance, critical for rapid field deployment scenarios.
Despite its compact 16B dimensions, the connector withstands 50G shock loads and 20G vibration per MIL-STD-202 standards.
The fail-safe Locking Clip (1) on Base Bottom design includes secondary retention that prevents accidental release under explosive decompression conditions.
The M32 interface incorporates anti-FOD features that prevent loose debris generation during repeated mating cycles.
Precision-machined to 4.606" L x 2.244" W x 3.181" H (117.00mm x 57.00mm x 80.80mm) specifications, the connector maintains impedance stability within 2% across all mated pairs.
Low-observable Gray meets strict reflectivity requirements for stealth applications while maintaining visibility for maintenance.
Cover, Feed Through include rad-hard materials suitable for satellite systems exposed to >100kRad total ionizing dose.
IP65 - Dust Tight, Water Resistant performance includes validation for salt fog exposure per MIL-STD-810 Method 509, ensuring operation in naval environments.
High-strength Aluminum, Die Cast composition provides RFI/EMI shielding effectiveness exceeding 90dB up to 18GHz frequency range.
Advanced Powder Coated provides tribological properties that reduce mating force while preventing cold welding in space applications.
Qualified for -40°C ~ 125°C extremes, the connector maintains signal integrity during rapid thermal transients up to 10 C/minute.
Product Attributes
- Product Status: Active
- Connector Type: Base - Box Mount
- Style: Side Entry
- Size: 16B
- Lock Location: Locking Clip (1) on Base Bottom
- Thread Size: M32
- Size / Dimension: 4.606" L x 2.244" W x 3.181" H (117.00mm x 57.00mm x 80.80mm)
- Housing Color: Gray
- Features: Cover, Feed Through
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
