19390060426
HARTING
19390060426
HARTING

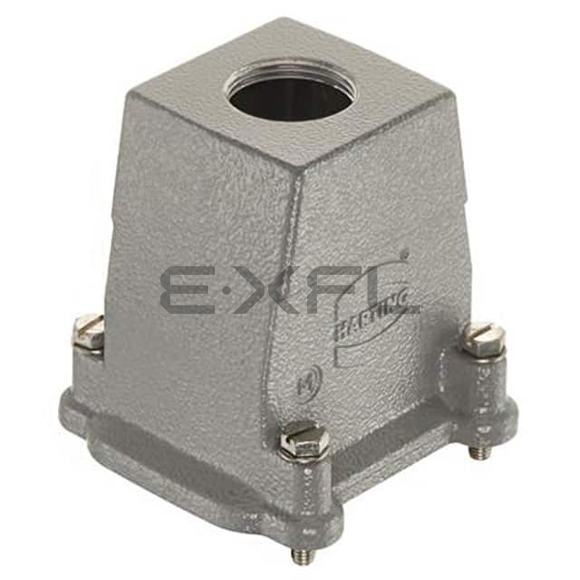

6B HP SCREW DOWN HOOD TOP ENTRY
Reference Price (USD)
1+
$101.22000
500+
$100.2078
1000+
$99.1956
1500+
$98.1834
2000+
$97.1712
2500+
$96.159
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
19390060426
$101.22
Product details
Designed for next-generation electric vehicles, the 19390060426 from HARTING delivers robust performance in Heavy Duty Connectors - Housings, Hoods, Bases for high-voltage battery systems. This automotive-grade solution meets stringent ISO 6469 and LV214 standards for electrified powertrains.<p>The Hood architecture incorporates arc-flash prevention technology that safely breaks 800V DC circuits under load conditions.</p><p>With Top Entry configuration, the HVIL (High Voltage Interlock Loop) system ensures proper sequencing during connection and disconnection.</p><p>Optimized 6B dimensions accommodate 600A continuous current while providing 15mm creepage distance for 1000V applications.</p><p>The safety-interlocked Screw Locks on Hood mechanism prevents access to live contacts during maintenance operations.</p><p>The M25 interface incorporates corrosion-resistant plating that withstands 1000 hours of salt spray testing.</p><p>Engineered to 2.874" L x 2.791" W x 2.929" H (73.00mm x 70.90mm x 74.40mm) specifications, the connector withstands 50G mechanical shock per ISO 16750-3.</p><p>High-visibility Gray provides clear identification of high-voltage components per SAE J2340.</p><p>IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof rating ensures reliable operation when exposed to road spray and pressure washing in underbody locations.</p><p>Halogen-free Aluminum, Die Cast meets UL94 V-0 flammability requirements while minimizing toxic fume emission.</p><p>Advanced Powder Coated provides UV stability for exterior-mounted charge ports without color fading.</p><p>Rated for -40°C ~ 125°C range, the connector maintains stable contact resistance during extreme fast-charging cycles.</p>
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Top Entry
- Size: 6B
- Lock Location: Screw Locks on Hood
- Thread Size: M25
- Size / Dimension: 2.874" L x 2.791" W x 2.929" H (73.00mm x 70.90mm x 74.40mm)
- Housing Color: Gray
- Features: -
- Ingress Protection: IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Housing Material: Aluminum, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
