19400240652
HARTING
19400240652
HARTING

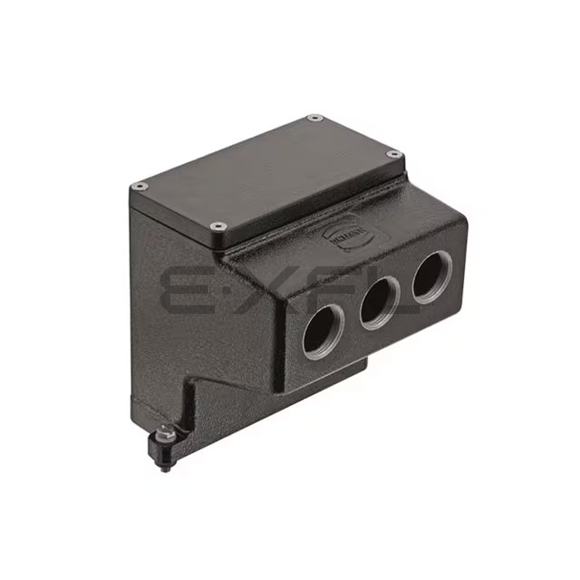

CONN HOOD SIDE TRIPLE SZ24B M32
Reference Price (USD)
1+
$554.52000
500+
$548.9748
1000+
$543.4296
1500+
$537.8844
2000+
$532.3392
2500+
$526.794
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
19400240652
$554.52
Product details
Designed for next-generation electric vehicles, the 19400240652 from HARTING delivers robust performance in Heavy Duty Connectors - Housings, Hoods, Bases for high-voltage battery systems. This automotive-grade solution meets stringent ISO 6469 and LV214 standards for electrified powertrains.<p>The Hood - 90° architecture incorporates arc-flash prevention technology that safely breaks 800V DC circuits under load conditions.</p><p>With Side Entry, Triple configuration, the HVIL (High Voltage Interlock Loop) system ensures proper sequencing during connection and disconnection.</p><p>Optimized 24B dimensions accommodate 600A continuous current while providing 15mm creepage distance for 1000V applications.</p><p>The safety-interlocked Screw Locks on Hood mechanism prevents access to live contacts during maintenance operations.</p><p>The M32 interface incorporates corrosion-resistant plating that withstands 1000 hours of salt spray testing.</p><p>Engineered to 7.559" L x 5.118" W x 6.024" H (192.00mm x 130.00mm x 153.00mm) specifications, the connector withstands 50G mechanical shock per ISO 16750-3.</p><p>High-visibility Black provides clear identification of high-voltage components per SAE J2340.</p><p>IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof rating ensures reliable operation when exposed to road spray and pressure washing in underbody locations.</p><p>Halogen-free Aluminum, Die Cast meets UL94 V-0 flammability requirements while minimizing toxic fume emission.</p><p>Advanced Powder Coated provides UV stability for exterior-mounted charge ports without color fading.</p><p>Rated for -40°C ~ 125°C range, the connector maintains stable contact resistance during extreme fast-charging cycles.</p>
Product Attributes
- Product Status: Active
- Connector Type: Hood - 90°
- Style: Side Entry, Triple
- Size: 24B
- Lock Location: Screw Locks on Hood
- Thread Size: M32
- Size / Dimension: 7.559" L x 5.118" W x 6.024" H (192.00mm x 130.00mm x 153.00mm)
- Housing Color: Black
- Features: -
- Ingress Protection: IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Housing Material: Aluminum, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
