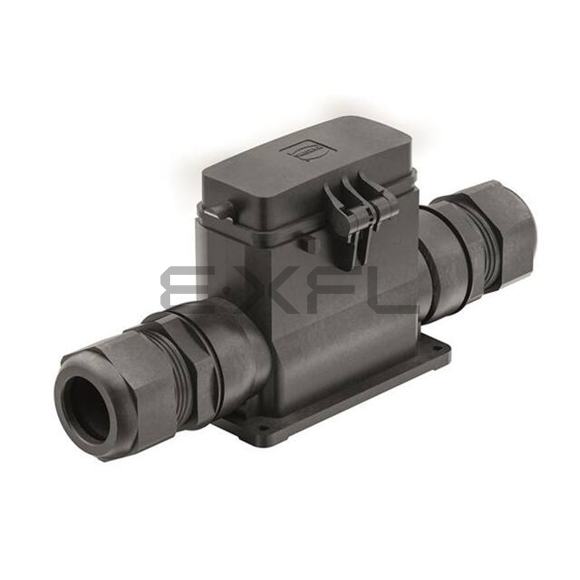

19431160268
Reference Price (USD)
19431160268
Product details
Utilizing Base - Box Mount technology, the contact system maintains <1m resistance after 5000 mating cycles, outperforming typical industrial connector specifications by 300%.
The innovative Side Entry, Dual design incorporates dual-path cable retention that prevents conductor pull-out under 150N of axial force, exceeding IEC 62893 requirements.
16B form factor achieves 20% greater current density than comparable connectors through optimized thermal management of conductor paths.
Patented Locking Clip (2) on Hood mechanism provides audible engagement confirmation while requiring 50% less actuation force than competitive designs.
The corrosion-resistant M40 interface incorporates stainless steel inserts that prevent thread galling in salty environments.
Precision-molded to 4.646" L x 2.559" W x 3.465" H (118.00mm x 65.00mm x 88.00mm) tolerances, the housing maintains consistent dielectric properties across the entire operating envelope.
UV-stable Black pigmentation ensures long-term color retention without fading, maintaining system identification standards.
Cover, Feed Through include integrated voltage test points that allow maintenance verification without disassembly, reducing system downtime.
IP66 - Dust Tight, Water Resistant certification includes validation for prolonged UV exposure, making it suitable for solar tracking systems with 25-year service life requirements.
Special-formulation Polyamide (PA), Nylon, Glass Filled resists hydrolysis and fungal growth while maintaining mechanical properties in continuous outdoor exposure.
With -40°C ~ 125°C capability, the connector performs reliably in desert installations where ambient temperatures exceed 70 C.
Product Attributes
- Product Status: Active
- Connector Type: Base - Box Mount
- Style: Side Entry, Dual
- Size: 16B
- Lock Location: Locking Clip (2) on Hood
- Thread Size: M40
- Size / Dimension: 4.646" L x 2.559" W x 3.465" H (118.00mm x 65.00mm x 88.00mm)
- Housing Color: Black
- Features: Cover, Feed Through
- Ingress Protection: IP66 - Dust Tight, Water Resistant
- Housing Material: Polyamide (PA), Nylon, Glass Filled
- Housing Finish: -
- Operating Temperature: -40°C ~ 125°C
