19620031443
Reference Price (USD)
19620031443

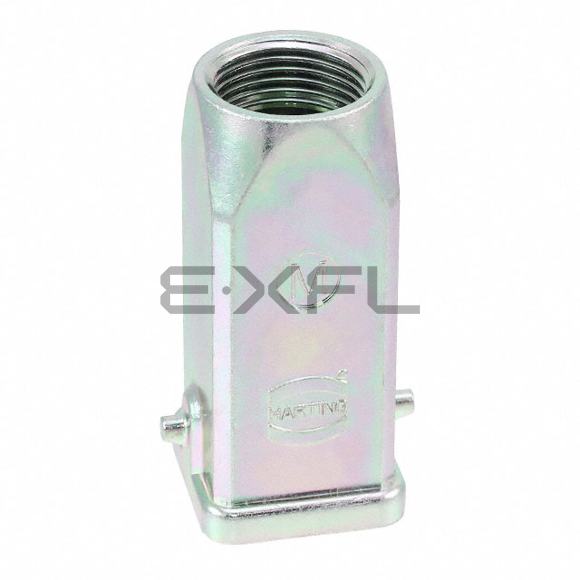

Product details
The Hood configuration features hermetic sealing technology that maintains <1x10^-9 atm-cc/sec helium leak rate, suitable for vacuum chamber applications.
With Top Entry architecture, the connector supports blind-mate capabilities with 2mm alignment tolerance, critical for rapid field deployment scenarios.
Despite its compact 3A dimensions, the connector withstands 50G shock loads and 20G vibration per MIL-STD-202 standards.
The fail-safe Locking Clip (1) on Base Bottom design includes secondary retention that prevents accidental release under explosive decompression conditions.
The M20 interface incorporates anti-FOD features that prevent loose debris generation during repeated mating cycles.
Precision-machined to 1.063" L x 1.102" W x 2.362" H (27.00mm x 28.00mm x 60.00mm) specifications, the connector maintains impedance stability within 2% across all mated pairs.
IP44 performance includes validation for salt fog exposure per MIL-STD-810 Method 509, ensuring operation in naval environments.
High-strength Zinc, Die Cast composition provides RFI/EMI shielding effectiveness exceeding 90dB up to 18GHz frequency range.
Qualified for -40°C ~ 125°C extremes, the connector maintains signal integrity during rapid thermal transients up to 10 C/minute.
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Top Entry
- Size: 3A
- Lock Location: Locking Clip (1) on Base Bottom
- Thread Size: M20
- Size / Dimension: 1.063" L x 1.102" W x 2.362" H (27.00mm x 28.00mm x 60.00mm)
- Housing Color: -
- Features: -
- Ingress Protection: IP44
- Housing Material: Zinc, Die Cast
- Housing Finish: -
- Operating Temperature: -40°C ~ 125°C
