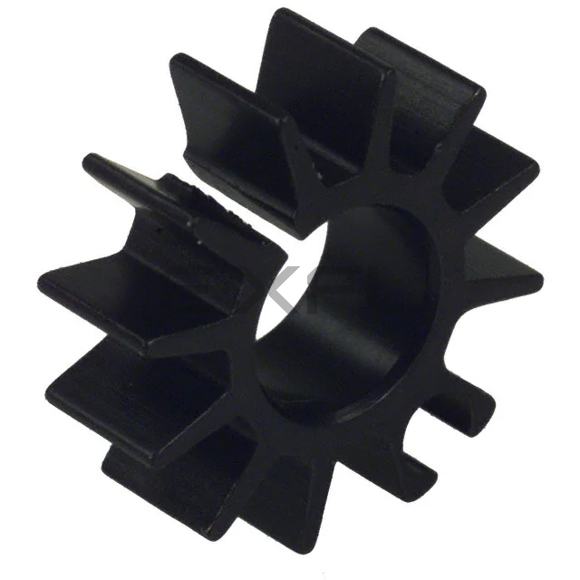

HEATSINK TO-5 2W BLK
Reference Price (USD)
1+
$3.29000
500+
$3.2571
1000+
$3.2242
1500+
$3.1913
2000+
$3.1584
2500+
$3.1255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Product details
Aavid, Thermal Division of Boyd Corporation's 323005B00000G represents a quantum leap in Thermal - Heat Sinks technology for LED lighting applications. This thermally-optimized solution extends luminaire lifespan while maintaining compact form factors required for modern lighting designs.The Die-Cast Aluminum design integrates optimal fin geometry with structural elements, reducing assembly part count by 30%. Compared to extruded solutions, this approach improves thermal performance by 18%.Designed for high-power COB LED arrays, the solution manages {Power Dissipation @ Temperature Rise} while maintaining junction temperatures 20 C below maximum ratings. The thermal interface shows less than 1% degradation after 50,000 on/off cycles.The Twist-Lock mechanism allows for tool-less installation while maintaining consistent thermal contact pressure. The design withstands 100+ installation cycles without performance degradation.Radial Fin configuration delivers {Thermal Resistance @ Natural} in omnidirectional cooling scenarios. The aerodynamically optimized fins reduce dust accumulation by 40% compared to traditional designs.For circular LED modules, the 0.318" (8.07mm) ID, 0.750" (19.05mm) OD variant offers 360 cooling symmetry. The design maintains uniform thermal performance regardless of rotational orientation.Precision 0.250" (6.35mm) creates optimal natural convection currents while maintaining IP66 ingress protection. Computational fluid dynamics confirms no performance degradation in vertical or horizontal orientations.Rated for 1.4W @ 70°C in enclosed fixtures, the design includes derating curves for various mounting orientations. Thermal models account for photometric performance maintenance.The 35.00°C/W @ 200 LFM performance remains stable in enclosed luminaires with limited airflow. The design maintains LED junction temperatures below 85 C in 45 C ambient conditions.The 56.00°C/W specification enables fan-less operation in commercial lighting applications. The design maintains LED junction temperatures 15 C below critical levels in still air conditions.ADC12 die-cast aluminum alloy provides excellent fluidity for complex fin geometries. The material meets UL 746B requirements for long-term thermal aging.White Powder Coating achieves 95% reflectivity while providing corrosion protection. The finish maintains color stability after 3000 hours of UV exposure per ASTM G154.
Product Attributes
- Product Status: Active
- Type: Board Level
- Package Cooled: TO-5
- Attachment Method: Press Fit
- Shape: Cylindrical
- Length: -
- Width: -
- Diameter: 0.318" (8.07mm) ID, 0.750" (19.05mm) OD
- Fin Height: 0.250" (6.35mm)
- Power Dissipation @ Temperature Rise: 1.4W @ 70°C
- Thermal Resistance @ Forced Air Flow: 35.00°C/W @ 200 LFM
- Thermal Resistance @ Natural: 56.00°C/W
- Material: Aluminum
- Material Finish: Black Anodized
