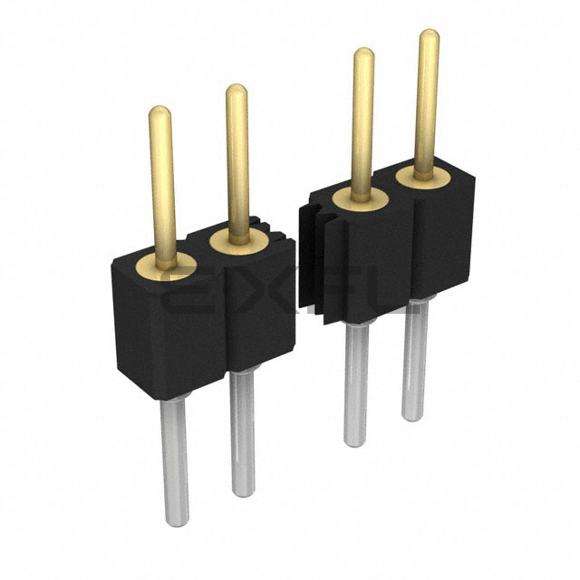

350-V3-159-00-006101

Product details

Product Attributes

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 59
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Unshrouded
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.141" (3.60mm)
• Contact Length - Post: 0.114" (2.90mm)
• Overall Contact Length: 0.394" (10.00mm)
• Insulation Height: 0.110" (2.79mm)
• Contact Shape: Circular
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 29.5µin (0.75µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
• Features: -
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3A
• Voltage Rating: 150VDC
