5794176-5
TE Connectivity AMP Connectors
5794176-5
TE Connectivity AMP Connectors

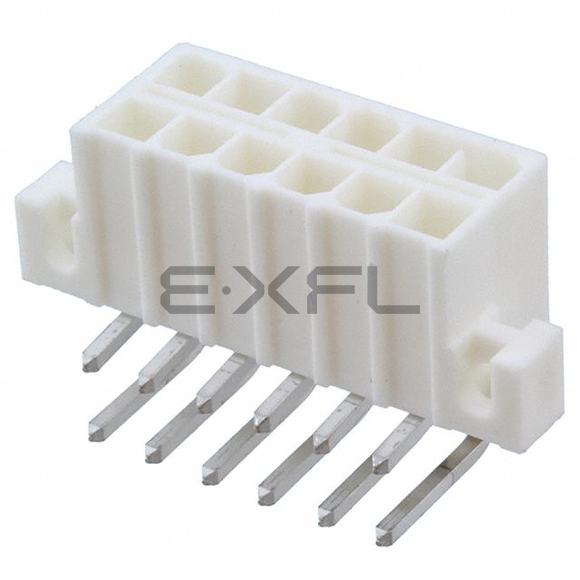

CONN HEADER R/A 12POS 4.2MM
Reference Price (USD)
1+
$5.57472
500+
$5.5189728
1000+
$5.4632256
1500+
$5.4074784
2000+
$5.3517312
2500+
$5.295984
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
5794176-5
$5.57
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.217" (5.51mm)
- Number of Positions Loaded: 11
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.205" (5.21mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.461" (11.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Mounting Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 600VAC
