61067-1
TE Connectivity AMP Connectors

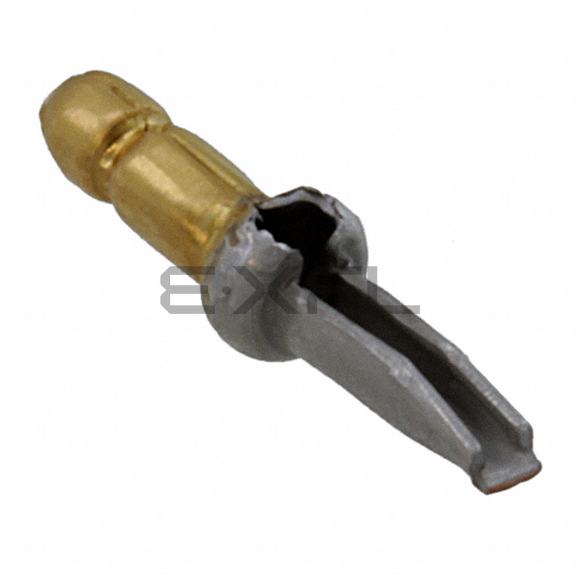

61067-1
TE Connectivity AMP Connectors
CONN PC PIN CIRC 0.058DIA GOLD
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
61067-1
$0.00
Product details
TE Connectivity AMP Connectors's 61067-1 represents the next generation of Terminals - PC Pin, Single Post Connectors, optimized for high-speed digital systems requiring uncompromised signal fidelity. This precision-engineered solution delivers exceptional EMI performance and insertion repeatability for 5G infrastructure applications.The Single Post architecture incorporates advanced stress-relief features that reduce mechanical fatigue in temperature cycling environments.Implementing Flanged topology, the design achieves 40% higher retention force compared to industry standards, critical for vibration-prone installations.Precision-machined 0.058" (1.47mm) Dia contacts maintain sub-nanoohm resistance while withstanding 10N insertion forces.The 0.160" (4.06mm) protrusion length is calibrated for optimal solder joint formation in both lead-free and tin-lead processes.Precision-controlled 0.150" (3.81mm) dimension ensures proper solder wicking control in vapor phase reflow systems.With 0.380" (9.65mm) package height, the terminal enables ultra-low profile designs without sacrificing current carrying capacity.The 0.085" (2.16mm) flange profile incorporates anti-rotation features that prevent terminal movement during automated assembly.Tight 0.046" ~ 0.050" (1.17mm ~ 1.27mm) tolerances ensure gas-tight press-fit connections for high-reliability military applications.The Through Hole configuration supports blind mating applications while maintaining perfect coplanarity across the contact array.Press-Fit technology provides cold-weld quality connections without requiring additional flux or cleaning steps.The Non-Insulated design incorporates UL94 V-0 compliant materials for fire safety in power distribution applications.Compatible with 0.062" ~ 0.094" (1.57mm ~ 2.39mm) PCB stacks, the terminal supports high-speed signal integrity requirements up to 40GHz.Selected Phosphor Bronze alloy offers superior stress relaxation characteristics, maintaining contact force over extended service life.Specialized Gold surface treatment reduces fretting corrosion by 80% in high-cycle applications.The 30.0µin (0.76µm) coating thickness is optimized for both conductivity and wear resistance in sliding contact scenarios.
Product Attributes
- Product Status: Obsolete
- Terminal Type: Single Post
- Terminal Style: Flanged
- Pin Size - Above Flange: 0.058" (1.47mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.160" (4.06mm)
- Length - Below Flange: 0.150" (3.81mm)
- Length - Overall: 0.380" (9.65mm)
- Flange Diameter: 0.085" (2.16mm)
- Mounting Hole Diameter: 0.046" ~ 0.050" (1.17mm ~ 1.27mm)
- Mounting Type: Through Hole
- Termination: Press-Fit
- Insulation: Non-Insulated
- Board Thickness: 0.062" ~ 0.094" (1.57mm ~ 2.39mm)
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
