EDAC Inc.
623-025-261-032
EDAC Inc.

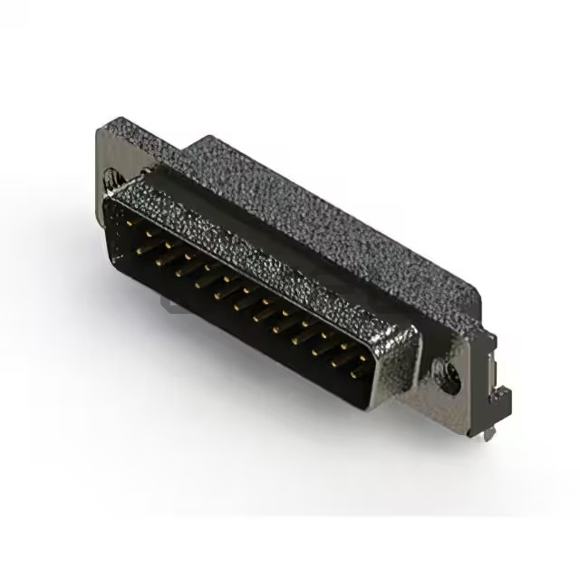

CONN D-SUB PLUG 25POS R/A SLDR
Reference Price (USD)
1+
$3.79960
500+
$3.761604
1000+
$3.723608
1500+
$3.685612
2000+
$3.647616
2500+
$3.60962
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
623-025-261-032
$3.80
Product details
Optimized for automotive Ethernet applications, EDAC Inc.'s 623-025-261-032 D-Sub Connectors delivers Category 5e performance in compact form factors. The innovative shielding design reduces EMI emissions by 18dB while supporting 1Gbps data rates.The D-Sub profile incorporates chamfered edges for tool-less mating in space-constrained vehicle harness assemblies.Plug, Male Pins contacts feature dual-fork geometry that maintains <50m resistance after 25,000 vibration cycles per USCAR-2.The 25 layout separates power and signal contacts with integrated transient voltage suppressors rated for 40A surge.Precision-molded 2 dielectric bodies maintain impedance within 5 of nominal 100 differential pairs.Board Edge, Through Hole, Right Angle configuration includes integrated PCB stiffeners that reduce flex-induced solder joint stress by 70%.The 3 (DB, B) design features 12-point grounding contacts that maintain <10nH inductance up to 6GHz.Signal implementation uses nanocrystalline alloys that exhibit <3% resistance change from -40 C to +125 C.The Housing/Shell (4-40) system incorporates conductive elastomer gaskets that maintain shielding integrity during 2mm panel misalignment.Our Solder methodology creates intermetallic bonds that survive 1000 thermal cycles from -55 C to +125 C.Steel, Nickel Plated provides >1000-hour corrosion resistance in GM9540P cyclic corrosion testing.The Gold surface treatment demonstrates <5% wear after 25,000 mating cycles per EIA-364-09.Precision-controlled Flash ensures proper noble metal diffusion barrier formation during extended thermal aging.All materials exceed UL94 V-0 requirements without red phosphorus additives for cleaner combustion.The 3A per Contact design incorporates current-sharing parallel paths that reduce thermal hot spots by 40%.0.197" (5.00mm) dimensional control ensures proper clearance for automotive wire harness bend radii.Board Lock, Grounding Indents, Mounting Brackets, Shielded include integrated magnetics for 100Base-T1 applications with <1.5dB insertion loss at 100MHz.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Plug, Male Pins
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.197" (5.00mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
