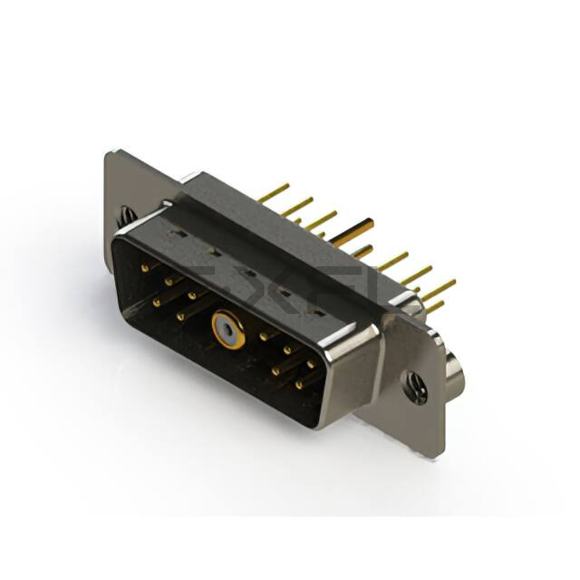

CONN D-SUB PLUG 11P PNL MNT SLDR
Reference Price (USD)
1+
$7.20670
500+
$7.134633
1000+
$7.062566
1500+
$6.990499
2000+
$6.918432
2500+
$6.846365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
627-11W1224-5T2
$7.21
Product details
Designed for aerospace avionics, EDAC Inc.'s 627-11W1224-5T2 D-Sub Connectors meets DO-160G standards while reducing weight by 40% versus traditional connectors. The composite shell design maintains shielding effectiveness during 50,000-foot altitude cycling.The D-Sub, Combo configuration incorporates anti-vibration features that maintain contact integrity during 20G shock events.Plug, Male Pins contacts employ quad-redundant springs that maintain continuity during 15G vibration per MIL-STD-810.The 11 (10 + 1 Coax) layout includes arc-resistant spacing that prevents flashover at 35,000-foot equivalent altitudes.Precision-machined 2 contact arrays maintain alignment within 0.1mm during thermal cycling from -65 C to +125 C.Panel Mount, Through Hole variant features hermetic glass seals that maintain <1x10-9 atm-cc/sec helium leak rate.The 2 (DA, A) - 11C1, 11W1 design provides 100dB shielding effectiveness from 10kHz to 18GHz per MIL-STD-461G.Coax and Signal implementation uses beryllium-nickel alloys that maintain spring properties at cryogenic temperatures.The Board Side (4-40) system incorporates vibration-resistant hardware that meets NASM25027 torque retention requirements.Our Solder methodology creates joints that survive 1000 thermal cycles from -65 C to +200 C.Steel, Tin Plated demonstrates >500-hour salt spray resistance per ASTM B117 with no measurable corrosion.The Gold surface treatment maintains <5m resistance after 500 hours of mixed flowing gas testing.Precision-controlled Flash ensures proper noble metal coverage after extended environmental exposure.All materials exceed UL94 V-0 requirements while maintaining low outgassing (<1% TML, <0.1% CVCM).Grounding Indents, Shielded include integrated transient voltage suppressors rated for 100A/100ms surge protection.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 11 (10 + 1 Coax)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 2 (DA, A) - 11C1, 11W1
- Contact Type: Coax and Signal
- Flange Feature: Board Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: -
- Features: Grounding Indents, Shielded
