EDAC Inc.
627-5W1-624-4NA
EDAC Inc.

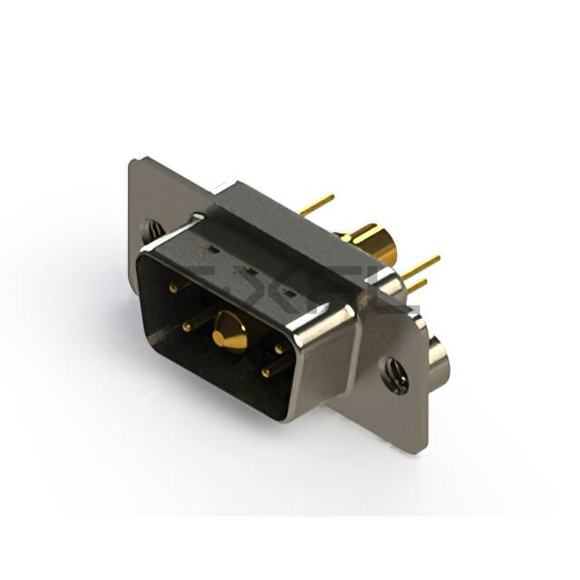

CONN D-SUB PLUG 5P PNL MNT SLDR
Reference Price (USD)
1+
$8.47928
500+
$8.3944872
1000+
$8.3096944
1500+
$8.2249016
2000+
$8.1401088
2500+
$8.055316
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
627-5W1-624-4NA
$8.48
Product details
Optimized for railway signaling systems, EDAC Inc.'s 627-5W1-624-4NA D-Sub Connectors meets EN 50155 standards while withstanding 15G shock and 5G vibration. The robust design maintains signal integrity in electromagnetic environments up to 100V/m RF interference.The D-Sub, Combo configuration features double-locking mechanisms that prevent accidental disconnection in moving vehicles.Plug, Male Pins contacts employ self-cleaning wiping action that maintains <20m resistance in dusty environments.The 5 (4 + 1 Power) layout includes segregated high-voltage and signal contacts with 8mm creepage distance.Precision-machined 2 contact arrays maintain alignment within 0.2mm during 50G shock events.Panel Mount, Through Hole variant incorporates vibration-resistant hardware that maintains torque retention after 10 million stress cycles.The 1 (DE, E) - 5W1 design provides 80dB shielding effectiveness from 10kHz to 6GHz per EN 50121-4.Signal and Power implementation uses nickel-cobalt alloys that maintain spring properties at -40 C to +125 C operating range.The Board Side (M3) system enables IP69K-rated sealing that withstands high-pressure washdown procedures.Our Solder process creates crimp connections that survive 1000 thermal shock cycles from -40 C to +125 C.Steel, Nickel Plated demonstrates >500-hour resistance to railway lubricants and cleaning agents.The Gold surface treatment maintains <15m resistance after 1000 hours salt spray exposure.Precision-controlled 30.0µin (0.76µm) ensures proper wear resistance during 25,000 mating cycles.All materials exceed UL94 V-0 requirements per EN 45545-2 for railway applications.The 5A, 40A design incorporates parallel contact paths that maintain continuity during vibration.Grounding Indents, Shielded include integrated transient suppressors that protect against 1kV/500A surge pulses.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 5 (4 + 1 Power)
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Shell Size, Connector Layout: 1 (DE, E) - 5W1
- Contact Type: Signal and Power
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 40A
- Backset Spacing: -
- Features: Grounding Indents, Shielded
