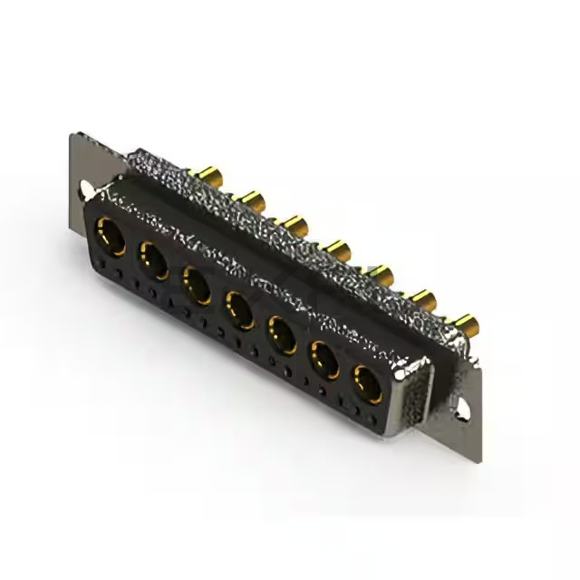

CONN D-SUB RCPT 24POS VERT SLDR
Reference Price (USD)
1+
$12.80480
500+
$12.676752
1000+
$12.548704
1500+
$12.420656
2000+
$12.292608
2500+
$12.16456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
628-24W7224-2T1
$12.80
Product details
EDAC Inc.'s 628-24W7224-2T1 redefines performance standards in D-Sub Connectors for next-generation industrial automation systems. The patented contact geometry achieves 12G shock resistance while maintaining <1ns signal skew across all channels.The D-Sub, Combo design incorporates polarized mating guides that prevent misinsertion damage in blind-mate rack installations.Utilizing Receptacle, Female Sockets configuration, the contacts feature hyperbolic geometry that reduces mating force by 25% while increasing wipe distance to 2.5mm.24 (17 + 7 Power) hybrid layout separates power and signal contacts with integrated ferrite beads for conducted EMI suppression up to 30dB.Precision-stamped 2 contact arrays maintain 0.05mm positional accuracy for high-speed differential pair alignment.The Through Hole version includes integrated strain relief that withstands 50N cable pull force without deformation.5 (DD, D) - 24W7 incorporates gold-plated grounding springs that maintain <5m impedance across 10,000 thermal cycles.The Signal and Power implementation uses oxygen-free copper with grain-stabilized annealing for stable resistance over 10,000 mating cycles.Housing/Shell (Unthreaded) design features captive stainless steel hardware that prevents loosening under 5G vibration per MIL-STD-202G.Our Solder process creates cold-welded joints with fracture strength exceeding conductor tensile values by 20%.The Steel, Tin Plated combination demonstrates >500-hour humidity resistance per MIL-STD-810 Method 507.6.Gold surface treatment maintains <15m contact resistance after 100 hours mixed flowing gas testing.The Flash specification ensures proper noble metal diffusion barrier formation during high-temperature aging tests.All dielectric components meet UL94 V-0 requirements without halogenated additives for clean combustion.The Shielded package includes integrated ESD protection diodes rated for 15kV air discharge per IEC 61000-4-2.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 24 (17 + 7 Power)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 5 (DD, D) - 24W7
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: -
- Features: Shielded
