629-11W1240-3N3
EDAC Inc.
629-11W1240-3N3
EDAC Inc.

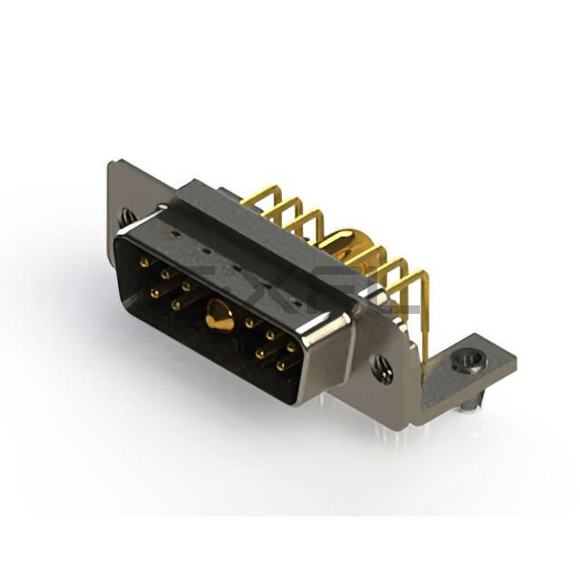

CONN D-SUB PLUG 11POS R/A SLDR
Reference Price (USD)
1+
$7.77000
500+
$7.6923
1000+
$7.6146
1500+
$7.5369
2000+
$7.4592
2500+
$7.3815
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
629-11W1240-3N3
$7.77
Product details
Optimized for automotive Ethernet applications, EDAC Inc.'s 629-11W1240-3N3 D-Sub Connectors delivers Category 5e performance in compact form factors. The innovative shielding design reduces EMI emissions by 18dB while supporting 1Gbps data rates.The D-Sub, Combo profile incorporates chamfered edges for tool-less mating in space-constrained vehicle harness assemblies.Plug, Male Pins contacts feature dual-fork geometry that maintains <50m resistance after 25,000 vibration cycles per USCAR-2.The 11 (10 + 1 Power) layout separates power and signal contacts with integrated transient voltage suppressors rated for 40A surge.Precision-molded 2 dielectric bodies maintain impedance within 5 of nominal 100 differential pairs.Through Hole, Right Angle configuration includes integrated PCB stiffeners that reduce flex-induced solder joint stress by 70%.The 2 (DA, A) - 11C1, 11W1 design features 12-point grounding contacts that maintain <10nH inductance up to 6GHz.Signal and Power implementation uses nanocrystalline alloys that exhibit <3% resistance change from -40 C to +125 C.The Housing/Shell (4-40) system incorporates conductive elastomer gaskets that maintain shielding integrity during 2mm panel misalignment.Our Solder methodology creates intermetallic bonds that survive 1000 thermal cycles from -55 C to +125 C.Steel, Nickel Plated provides >1000-hour corrosion resistance in GM9540P cyclic corrosion testing.The Gold surface treatment demonstrates <5% wear after 25,000 mating cycles per EIA-364-09.Precision-controlled Flash ensures proper noble metal diffusion barrier formation during extended thermal aging.All materials exceed UL94 V-0 requirements without red phosphorus additives for cleaner combustion.The 5A, 30A design incorporates current-sharing parallel paths that reduce thermal hot spots by 40%.0.370" (9.40mm) dimensional control ensures proper clearance for automotive wire harness bend radii.Board Lock, Grounding Indents, Mounting Brackets include integrated magnetics for 100Base-T1 applications with <1.5dB insertion loss at 100MHz.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 11 (10 + 1 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) - 11C1, 11W1
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
