629-13W6650-1NB
EDAC Inc.
629-13W6650-1NB
EDAC Inc.

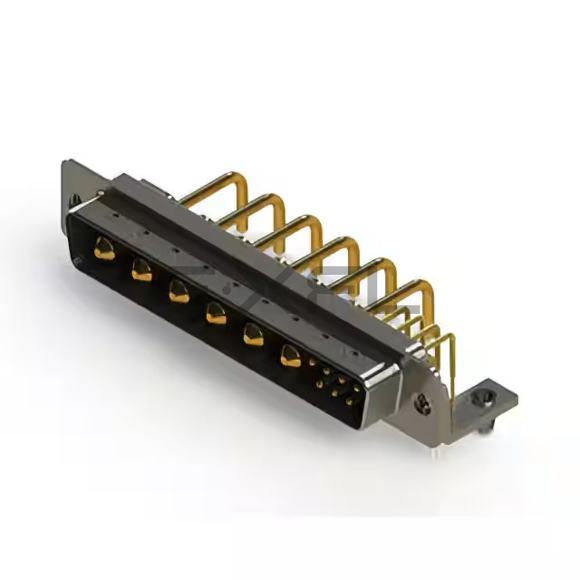

CONN D-SUB PLUG 13POS R/A SLDR
Reference Price (USD)
1+
$30.53824
500+
$30.2328576
1000+
$29.9274752
1500+
$29.6220928
2000+
$29.3167104
2500+
$29.011328
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
629-13W6650-1NB
$30.54
Product details
Designed for aerospace avionics, EDAC Inc.'s 629-13W6650-1NB D-Sub Connectors meets DO-160G standards while reducing weight by 40% versus traditional connectors. The composite shell design maintains shielding effectiveness during 50,000-foot altitude cycling.The D-Sub, Combo configuration incorporates anti-vibration features that maintain contact integrity during 20G shock events.Plug, Male Pins contacts employ quad-redundant springs that maintain continuity during 15G vibration per MIL-STD-810.The 13 (7 + 6 Power) layout includes arc-resistant spacing that prevents flashover at 35,000-foot equivalent altitudes.Precision-machined 2 contact arrays maintain alignment within 0.1mm during thermal cycling from -65 C to +125 C.Through Hole, Right Angle variant features hermetic glass seals that maintain <1x10-9 atm-cc/sec helium leak rate.The 4 (DC, C) - 13W6 design provides 100dB shielding effectiveness from 10kHz to 18GHz per MIL-STD-461G.Signal and Power implementation uses beryllium-nickel alloys that maintain spring properties at cryogenic temperatures.The Housing/Shell (M3) system incorporates vibration-resistant hardware that meets NASM25027 torque retention requirements.Our Solder methodology creates joints that survive 1000 thermal cycles from -65 C to +200 C.Steel, Nickel Plated demonstrates >500-hour salt spray resistance per ASTM B117 with no measurable corrosion.The Gold surface treatment maintains <5m resistance after 500 hours of mixed flowing gas testing.Precision-controlled 30.0µin (0.76µm) ensures proper noble metal coverage after extended environmental exposure.All materials exceed UL94 V-0 requirements while maintaining low outgassing (<1% TML, <0.1% CVCM).The 5A, 10A design incorporates parallel current paths that reduce thermal resistance by 30%.0.370" (9.40mm) dimensional control ensures proper clearance for conformal coatings in pressurized environments.Board Lock, Grounding Indents, Mounting Brackets include integrated transient voltage suppressors rated for 100A/100ms surge protection.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 13 (7 + 6 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C) - 13W6
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 10A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
