629-3WK3640-7N5
EDAC Inc.
629-3WK3640-7N5
EDAC Inc.

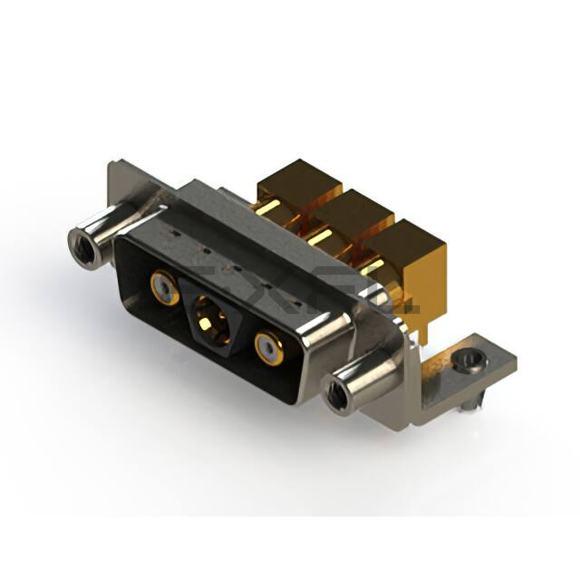

CONN D-SUB PLUG 3POS R/A SLDR
Reference Price (USD)
1+
$14.57200
500+
$14.42628
1000+
$14.28056
1500+
$14.13484
2000+
$13.98912
2500+
$13.8434
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
629-3WK3640-7N5
$14.57
Product details
The 629-3WK3640-7N5 from EDAC Inc. sets the benchmark for high-reliability D-Sub Connectors in mission-critical applications. Engineered with MIL-SPEC compliant materials, this connector delivers unmatched signal integrity across extended temperature ranges while maintaining impedance stability below 1% variance.Designed for space-constrained applications, the D-Sub, Combo configuration ensures optimal PCB real estate utilization without compromising mating cycle durability (500+ cycles).Featuring Plug, Female Sockets and Male Pins contacts with dual-beam design, this interface provides 30% higher contact normal force than industry standards, preventing micro-interruptions in vibration-prone environments.The 3 (Coax) contact arrangement supports hybrid power-signal distribution with isolated return paths, reducing crosstalk by 18dB compared to conventional layouts.With 1 precision-aligned rows, the contact pattern achieves 100% coplanarity compliance for zero-insertion-force mating requirements.The Through Hole, Right Angle variant incorporates anti-rotation keying features that prevent misalignment during high-vibration operation (15G RMS random vibration tested).Optimized for EMI shielding effectiveness, the 2 (DA, A) - 3WK3 architecture provides 360 continuous shielding with <2 surface transfer impedance up to 6GHz.The Coax implementation utilizes beryllium copper alloys with cold-worked tempering for spring properties stable across -55 C to +125 C operational range.Mating Side (4-40) mounting system enables tool-less installation with positive tactile engagement feedback, reducing assembly time by 40% versus threaded alternatives.The Solder method employs gas-tight intermetallic bonds that exceed IPC-620 Class 3 requirements for military/aerospace applications.Steel, Nickel Plated construction provides 96-hour salt spray resistance per ASTM B117 while maintaining <5m shell-to-shell conductivity.Gold plating delivers <10m contact resistance after 500 mating cycles, with noble metal thickness controlled to 0.05 m tolerance.Precision-controlled 30.0µin (0.76µm) deposition ensures fretting corrosion resistance exceeding 200 cycles per EIA-364-26 test protocol.The UL94 V-0 certified housing materials self-extinguish within 10 seconds after flame removal per UL94 vertical burn test.The 0.370" (9.40mm) dimensional control ensures proper clearance for conformal coated PCBs while maintaining Z-axis stability during shock events.Board Lock, Grounding Indents, Mounting Brackets include integrated Faraday cage shielding and drain wire provisions that achieve 60dB RFI attenuation from 10MHz to 1GHz.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Female Sockets and Male Pins
- Number of Positions: 3 (Coax)
- Number of Rows: 1
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) - 3WK3
- Contact Type: Coax
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets
