630-24W7640-2TB
EDAC Inc.
630-24W7640-2TB
EDAC Inc.

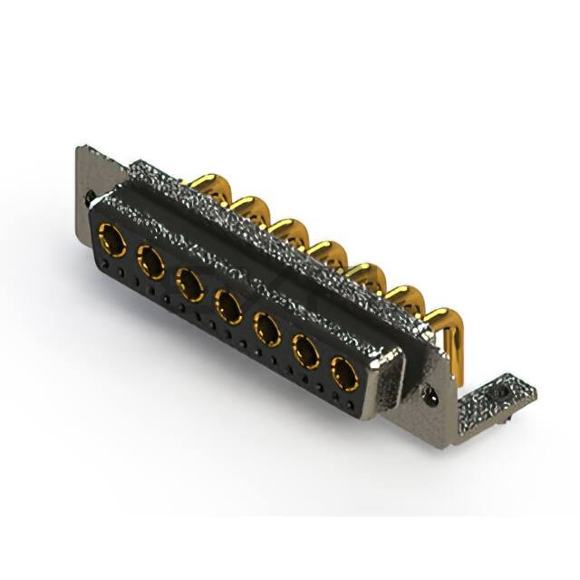

CONN D-SUB RCPT 24POS R/A SLDR
Reference Price (USD)
1+
$30.38282
500+
$30.0789918
1000+
$29.7751636
1500+
$29.4713354
2000+
$29.1675072
2500+
$28.863679
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
630-24W7640-2TB
$30.38
Product details
EDAC Inc.'s 630-24W7640-2TB redefines D-Sub Connectors performance in marine navigation systems. The corrosion-resistant design withstands 1000-hour salt fog testing while maintaining <2dB insertion loss at 2.4GHz for AIS and radar applications.The D-Sub, Combo configuration features captive sealing rings that maintain IP68 rating at 20-meter depth.Receptacle, Female Sockets contacts employ gold-over-nickel plating that resists galvanic corrosion in seawater environments.The 24 (17 + 7 Power) layout includes isolated RF and power contacts with 60dB crosstalk suppression.Precision-engineered 2 contact arrangement maintains 50 impedance within 5% in salt spray conditions.Through Hole, Right Angle variant incorporates non-magnetic stainless steel hardware for compass-safe installations.The 5 (DD, D) - 24W7 design provides 70dB shielding effectiveness from 10MHz to 6GHz.Signal and Power implementation uses beryllium-free alloys that maintain elasticity in -30 C to +85 C seawater.The Housing/Shell (M3) system enables one-handed operation with positive locking feedback in wet conditions.Our Solder methodology creates waterproof joints that withstand 100 bar hydrostatic pressure.Steel, Tin Plated demonstrates >2000-hour resistance to marine atmospheric corrosion.The Gold surface treatment maintains <10m resistance after 500 immersion cycles.Precision-controlled 30.0µin (0.76µm) ensures proper corrosion barrier in splash zones.All materials exceed UL94 V-0 requirements while maintaining low smoke toxicity.The 5A, 20A design incorporates de-rating curves for 45 C ambient seawater conditions.0.370" (9.40mm) dimensional control ensures proper drainage in vertical installations.Board Lock, Mounting Brackets include integrated galvanic isolators that prevent electrolytic corrosion between dissimilar metals.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 24 (17 + 7 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 5 (DD, D) - 24W7
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Mounting Brackets
