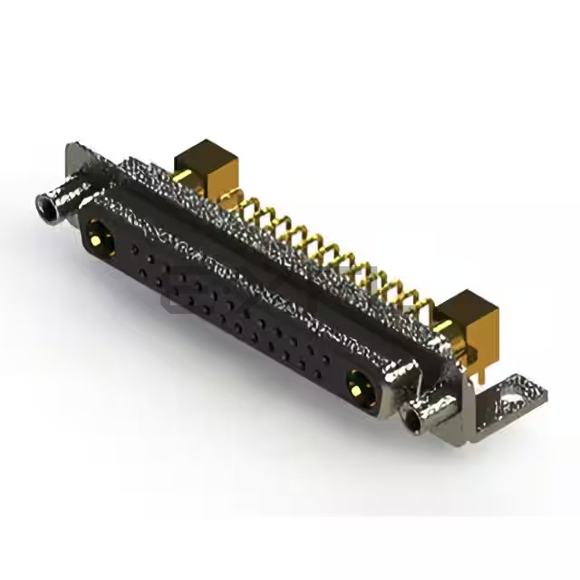

CONN D-SUB RCPT 27POS R/A SLDR
Reference Price (USD)
1+
$8.69206
500+
$8.6051394
1000+
$8.5182188
1500+
$8.4312982
2000+
$8.3443776
2500+
$8.257457
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
630-27W2240-5T6
$8.69
Product details
EDAC Inc.'s 630-27W2240-5T6 redefines performance standards in D-Sub Connectors for next-generation industrial automation systems. The patented contact geometry achieves 12G shock resistance while maintaining <1ns signal skew across all channels.The D-Sub, Combo design incorporates polarized mating guides that prevent misinsertion damage in blind-mate rack installations.Utilizing Receptacle, Female Sockets configuration, the contacts feature hyperbolic geometry that reduces mating force by 25% while increasing wipe distance to 2.5mm.27 (25 + 2 Coax) hybrid layout separates power and signal contacts with integrated ferrite beads for conducted EMI suppression up to 30dB.Precision-stamped 2 contact arrays maintain 0.05mm positional accuracy for high-speed differential pair alignment.The Through Hole, Right Angle version includes integrated strain relief that withstands 50N cable pull force without deformation.4 (DC, C) - 27W2 incorporates gold-plated grounding springs that maintain <5m impedance across 10,000 thermal cycles.The Coax and Signal implementation uses oxygen-free copper with grain-stabilized annealing for stable resistance over 10,000 mating cycles.Mating Side (4-40) design features captive stainless steel hardware that prevents loosening under 5G vibration per MIL-STD-202G.Our Solder process creates cold-welded joints with fracture strength exceeding conductor tensile values by 20%.The Steel, Tin Plated combination demonstrates >500-hour humidity resistance per MIL-STD-810 Method 507.6.Gold surface treatment maintains <15m contact resistance after 100 hours mixed flowing gas testing.The Flash specification ensures proper noble metal diffusion barrier formation during high-temperature aging tests.All dielectric components meet UL94 V-0 requirements without halogenated additives for clean combustion.0.370" (9.40mm) tolerance stacking ensures proper clearance for 3mm thick conformal coatings in harsh environments.The Board Lock package includes integrated ESD protection diodes rated for 15kV air discharge per IEC 61000-4-2.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 27 (25 + 2 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C) - 27W2
- Contact Type: Coax and Signal
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock
