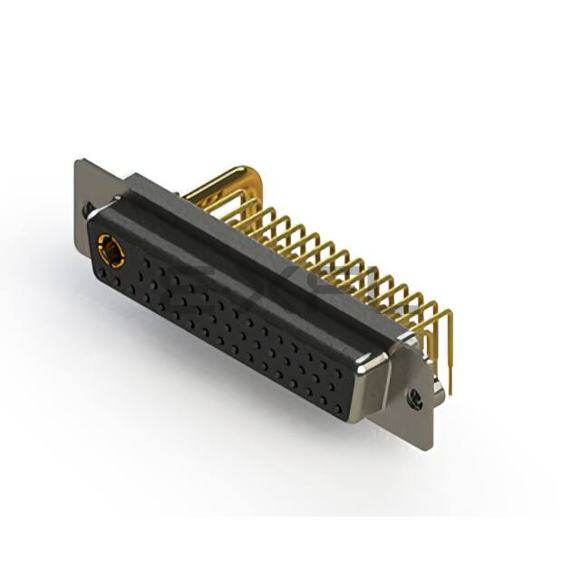

CONN D-SUB RCPT 47POS R/A SLDR
Reference Price (USD)
1+
$10.93729
500+
$10.8279171
1000+
$10.7185442
1500+
$10.6091713
2000+
$10.4997984
2500+
$10.3904255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
630-47W1250-3TA
$10.94
Product details
EDAC Inc.'s 630-47W1250-3TA redefines D-Sub Connectors performance in marine navigation systems. The corrosion-resistant design withstands 1000-hour salt fog testing while maintaining <2dB insertion loss at 2.4GHz for AIS and radar applications.The D-Sub, Combo configuration features captive sealing rings that maintain IP68 rating at 20-meter depth.Receptacle, Female Sockets contacts employ gold-over-nickel plating that resists galvanic corrosion in seawater environments.The 47 (46 + 1 Power) layout includes isolated RF and power contacts with 60dB crosstalk suppression.Precision-engineered 3 contact arrangement maintains 50 impedance within 5% in salt spray conditions.Through Hole, Right Angle variant incorporates non-magnetic stainless steel hardware for compass-safe installations.The 5 (DD, D) - 47W1 design provides 70dB shielding effectiveness from 10MHz to 6GHz.Signal and Power implementation uses beryllium-free alloys that maintain elasticity in -30 C to +85 C seawater.The Board Side (M3) system enables one-handed operation with positive locking feedback in wet conditions.Our Solder methodology creates waterproof joints that withstand 100 bar hydrostatic pressure.Steel, Tin Plated demonstrates >2000-hour resistance to marine atmospheric corrosion.The Gold surface treatment maintains <10m resistance after 500 immersion cycles.Precision-controlled Flash ensures proper corrosion barrier in splash zones.All materials exceed UL94 V-0 requirements while maintaining low smoke toxicity.The 5A, 30A design incorporates de-rating curves for 45 C ambient seawater conditions.0.370" (9.40mm) dimensional control ensures proper drainage in vertical installations.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 47 (46 + 1 Power)
- Number of Rows: 3
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 5 (DD, D) - 47W1
- Contact Type: Signal and Power
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: 0.370" (9.40mm)
- Features: -
