630-47W1640-2N4
EDAC Inc.
630-47W1640-2N4
EDAC Inc.

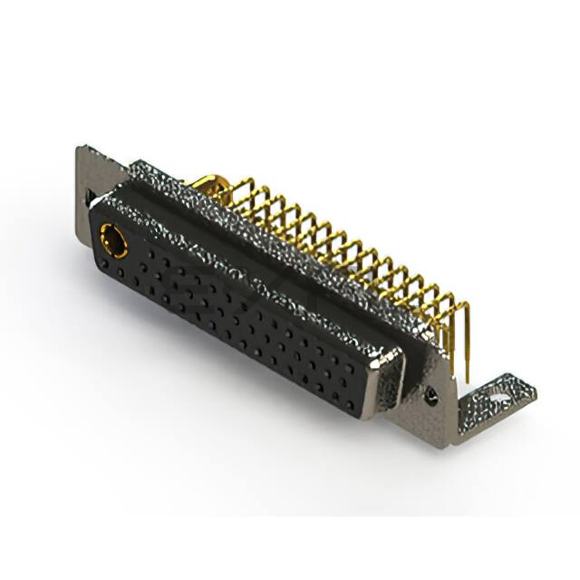

CONN D-SUB RCPT 47POS R/A SLDR
Reference Price (USD)
1+
$40.85200
500+
$40.44348
1000+
$40.03496
1500+
$39.62644
2000+
$39.21792
2500+
$38.8094
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
630-47W1640-2N4
$40.85
Product details
Designed for aerospace avionics, EDAC Inc.'s 630-47W1640-2N4 D-Sub Connectors meets DO-160G standards while reducing weight by 40% versus traditional connectors. The composite shell design maintains shielding effectiveness during 50,000-foot altitude cycling.The D-Sub, Combo configuration incorporates anti-vibration features that maintain contact integrity during 20G shock events.Receptacle, Female Sockets contacts employ quad-redundant springs that maintain continuity during 15G vibration per MIL-STD-810.The 47 (46 + 1 Power) layout includes arc-resistant spacing that prevents flashover at 35,000-foot equivalent altitudes.Precision-machined 3 contact arrays maintain alignment within 0.1mm during thermal cycling from -65 C to +125 C.Through Hole, Right Angle variant features hermetic glass seals that maintain <1x10-9 atm-cc/sec helium leak rate.The 5 (DD, D) - 47W1 design provides 100dB shielding effectiveness from 10kHz to 18GHz per MIL-STD-461G.Signal and Power implementation uses beryllium-nickel alloys that maintain spring properties at cryogenic temperatures.The Housing/Shell (4-40) system incorporates vibration-resistant hardware that meets NASM25027 torque retention requirements.Our Solder methodology creates joints that survive 1000 thermal cycles from -65 C to +200 C.Steel, Nickel Plated demonstrates >500-hour salt spray resistance per ASTM B117 with no measurable corrosion.The Gold surface treatment maintains <5m resistance after 500 hours of mixed flowing gas testing.Precision-controlled 30.0µin (0.76µm) ensures proper noble metal coverage after extended environmental exposure.All materials exceed UL94 V-0 requirements while maintaining low outgassing (<1% TML, <0.1% CVCM).The 5A, 20A design incorporates parallel current paths that reduce thermal resistance by 30%.0.370" (9.40mm) dimensional control ensures proper clearance for conformal coatings in pressurized environments.Mounting Brackets include integrated transient voltage suppressors rated for 100A/100ms surge protection.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 47 (46 + 1 Power)
- Number of Rows: 3
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 5 (DD, D) - 47W1
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 20A
- Backset Spacing: 0.370" (9.40mm)
- Features: Mounting Brackets
