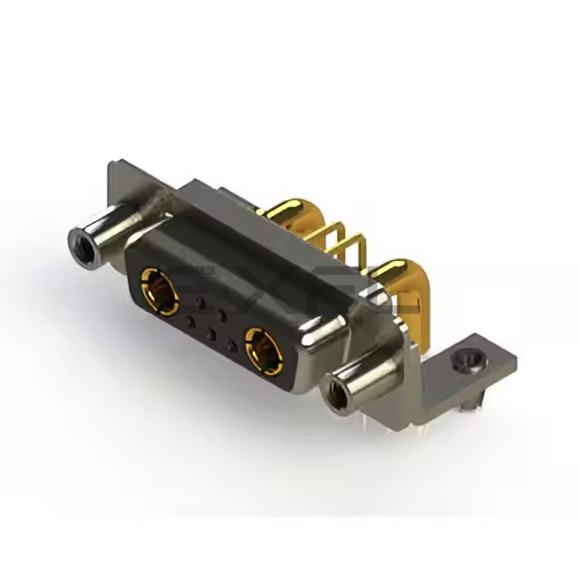

CONN D-SUB RCPT 7POS R/A SLDR
Reference Price (USD)
1+
$15.10424
500+
$14.9531976
1000+
$14.8021552
1500+
$14.6511128
2000+
$14.5000704
2500+
$14.349028
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
630-7W2-640-3N5
$15.10
Product details
Designed for aerospace avionics, EDAC Inc.'s 630-7W2-640-3N5 D-Sub Connectors meets DO-160G standards while reducing weight by 40% versus traditional connectors. The composite shell design maintains shielding effectiveness during 50,000-foot altitude cycling.The D-Sub, Combo configuration incorporates anti-vibration features that maintain contact integrity during 20G shock events.Receptacle, Female Sockets contacts employ quad-redundant springs that maintain continuity during 15G vibration per MIL-STD-810.The 7 (5 + 2 Power) layout includes arc-resistant spacing that prevents flashover at 35,000-foot equivalent altitudes.Precision-machined 2 contact arrays maintain alignment within 0.1mm during thermal cycling from -65 C to +125 C.Through Hole, Right Angle variant features hermetic glass seals that maintain <1x10-9 atm-cc/sec helium leak rate.The 2 (DA, A) - 7W2 design provides 100dB shielding effectiveness from 10kHz to 18GHz per MIL-STD-461G.Signal and Power implementation uses beryllium-nickel alloys that maintain spring properties at cryogenic temperatures.The Mating Side (4-40) system incorporates vibration-resistant hardware that meets NASM25027 torque retention requirements.Our Solder methodology creates joints that survive 1000 thermal cycles from -65 C to +200 C.Steel, Nickel Plated demonstrates >500-hour salt spray resistance per ASTM B117 with no measurable corrosion.The Gold surface treatment maintains <5m resistance after 500 hours of mixed flowing gas testing.Precision-controlled 30.0µin (0.76µm) ensures proper noble metal coverage after extended environmental exposure.All materials exceed UL94 V-0 requirements while maintaining low outgassing (<1% TML, <0.1% CVCM).The 5A, 30A design incorporates parallel current paths that reduce thermal resistance by 30%.0.370" (9.40mm) dimensional control ensures proper clearance for conformal coatings in pressurized environments.Board Lock, Mounting Brackets include integrated transient voltage suppressors rated for 100A/100ms surge protection.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 7 (5 + 2 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) - 7W2
- Contact Type: Signal and Power
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Mounting Brackets
