633-015-263-553
EDAC Inc.
633-015-263-553
EDAC Inc.

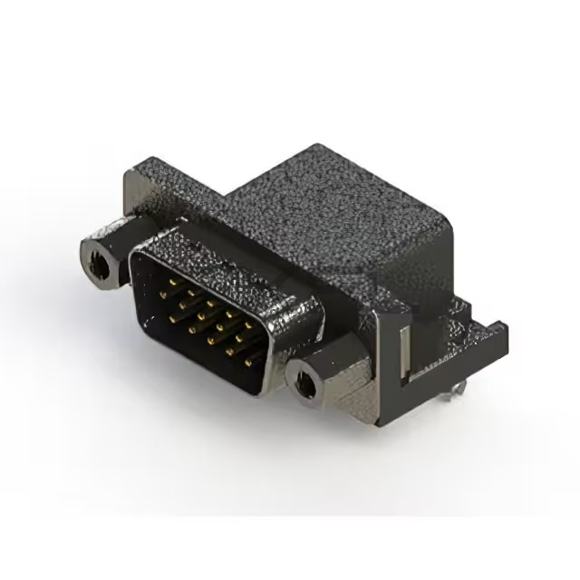

633 SERIES RIGHT ANGLE D-SUB PLU
Reference Price (USD)
1+
$3.10900
500+
$3.07791
1000+
$3.04682
1500+
$3.01573
2000+
$2.98464
2500+
$2.95355
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
633-015-263-553
$3.11
Product details
Designed for aerospace avionics, EDAC Inc.'s 633-015-263-553 D-Sub Connectors meets DO-160G standards while reducing weight by 40% versus traditional connectors. The composite shell design maintains shielding effectiveness during 50,000-foot altitude cycling.The D-Sub, High Density configuration incorporates anti-vibration features that maintain contact integrity during 20G shock events.Plug, Male Pins contacts employ quad-redundant springs that maintain continuity during 15G vibration per MIL-STD-810.The 15 layout includes arc-resistant spacing that prevents flashover at 35,000-foot equivalent altitudes.Precision-machined 3 contact arrays maintain alignment within 0.1mm during thermal cycling from -65 C to +125 C.Board Edge, Through Hole, Right Angle variant features hermetic glass seals that maintain <1x10-9 atm-cc/sec helium leak rate.The 1 (DE, E) High Density design provides 100dB shielding effectiveness from 10kHz to 18GHz per MIL-STD-461G.Signal implementation uses beryllium-nickel alloys that maintain spring properties at cryogenic temperatures.The Mating Side, Female Screwlock (4-40) system incorporates vibration-resistant hardware that meets NASM25027 torque retention requirements.Our Solder methodology creates joints that survive 1000 thermal cycles from -65 C to +200 C.Steel, Nickel Plated demonstrates >500-hour salt spray resistance per ASTM B117 with no measurable corrosion.The Gold surface treatment maintains <5m resistance after 500 hours of mixed flowing gas testing.Precision-controlled Flash ensures proper noble metal coverage after extended environmental exposure.All materials exceed UL94 V-0 requirements while maintaining low outgassing (<1% TML, <0.1% CVCM).The 3A per Contact design incorporates parallel current paths that reduce thermal resistance by 30%.0.350" (8.89mm) dimensional control ensures proper clearance for conformal coatings in pressurized environments.Board Lock, Grounding Indents, Mounting Brackets, Shielded include integrated transient voltage suppressors rated for 100A/100ms surge protection.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Plug, Male Pins
- Number of Positions: 15
- Number of Rows: 3
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 1 (DE, E) High Density
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.350" (8.89mm)
- Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
