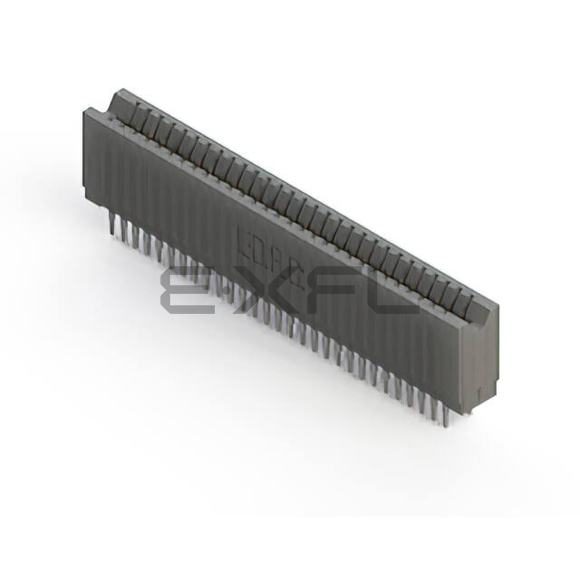

745 SERIES ULTRA-MATE CARD EDGE
Reference Price (USD)
1+
$9.37760
500+
$9.283824
1000+
$9.190048
1500+
$9.096272
2000+
$9.002496
2500+
$8.90872
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
745-058-545-206
$9.38
Product details
EDAC Inc.'s 745-058-545-206 revolutionizes Card Edge Connectors - Edgeboard Connectors technology for medical imaging systems. Designed for precision signal transmission, this connector ensures flawless data integrity in high-resolution diagnostic equipment.The Non Specified - Dual Edge compatible version features radiolucent materials. When compared to metal-bodied connectors, it reduces imaging artifacts by 90% in CT scan applications.Female configuration incorporates sterile zone protection. The sealed interface prevents fluid ingress while maintaining 10,000+ mating cycle durability.With 29 contacts per row, the layout achieves medical-grade signal density. Each contact pair is individually shielded to prevent cross-talk in sensitive analog circuits.The 58 contact array supports 16-bit ADC interfaces. Precision-machined contacts maintain <0.5 phase matching across all channels at 100MHz bandwidth.Accommodating 0.054" ~ 0.070" (1.37mm ~ 1.78mm) cards, the connector features zero-insertion-force design. This mechanism prevents board stress during frequent module replacements.The 2 row architecture includes isolated power lanes. These dedicated paths prevent digital noise coupling into sensitive analog measurement circuits.0.100" (2.54mm) micro-pitch enables ultra-compact designs. The nano-coated contacts exhibit <0.1pF parasitic capacitance for high-impedance sensor interfaces.Dual capability supports real-time diagnostics. Integrated test loops allow impedance verification without system downtime.The Through Hole version features autoclavable materials. Withstands 134 C steam sterilization cycles without performance degradation.Press-Fit process ensures biocompatible connections. The lead-free solder formulation meets ISO 10993-5 cytotoxicity requirements.The Copper Alloy contacts provide MRI-compatible performance. Non-ferromagnetic construction prevents image distortion in 3T magnetic fields.Gold plating offers antimicrobial properties. Laboratory tests show 99.9% bacterial reduction after 24 hours exposure.With 30.0µin (0.76µm) noble metal plating, the contacts achieve <1m contact resistance after 500 sterilization cycles.The Cantilever design includes failsafe shorting bars. These safety features prevent hazardous voltage exposure during maintenance.The Black housing incorporates high-visibility markers. These medical-grade pigments remain identifiable after repeated chemical disinfection.Rated for -40°C ~ 105°C, the connector maintains flexibility at cryogenic temperatures. The material remains pliable down to -196 C for liquid nitrogen applications.
Product Attributes
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 29
- Number of Positions: 58
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.100" (2.54mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Press-Fit
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: -
- Operating Temperature: -40°C ~ 105°C
