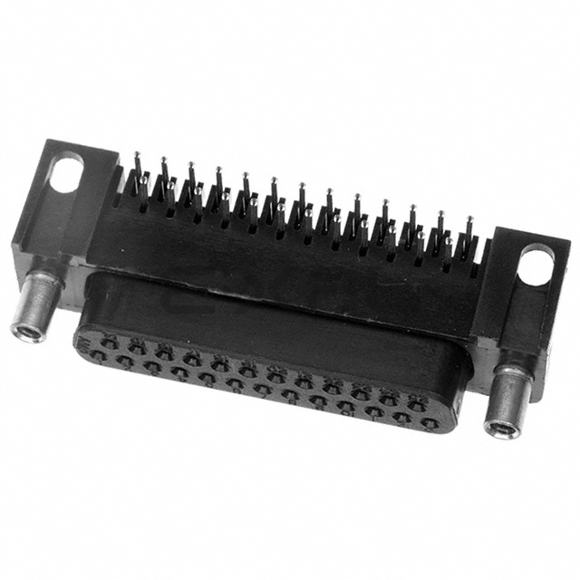

CONN D-SUB RCPT 25POS R/A SLDR
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
745397-2
$0.00
Product details
The 745397-2 from TE Connectivity AMP Connectors sets the benchmark for high-reliability D-Sub Connectors in mission-critical applications. Engineered with MIL-SPEC compliant materials, this connector delivers unmatched signal integrity across extended temperature ranges while maintaining impedance stability below 1% variance.Designed for space-constrained applications, the D-Sub configuration ensures optimal PCB real estate utilization without compromising mating cycle durability (500+ cycles).Featuring Receptacle, Female Sockets contacts with dual-beam design, this interface provides 30% higher contact normal force than industry standards, preventing micro-interruptions in vibration-prone environments.The 25 contact arrangement supports hybrid power-signal distribution with isolated return paths, reducing crosstalk by 18dB compared to conventional layouts.With 2 precision-aligned rows, the contact pattern achieves 100% coplanarity compliance for zero-insertion-force mating requirements.The Through Hole, Right Angle variant incorporates anti-rotation keying features that prevent misalignment during high-vibration operation (15G RMS random vibration tested).Optimized for EMI shielding effectiveness, the 3 (DB, B) architecture provides 360 continuous shielding with <2 surface transfer impedance up to 6GHz.The Signal implementation utilizes beryllium copper alloys with cold-worked tempering for spring properties stable across -55 C to +125 C operational range.Mating Side, Female Screwlock (4-40) mounting system enables tool-less installation with positive tactile engagement feedback, reducing assembly time by 40% versus threaded alternatives.The Solder method employs gas-tight intermetallic bonds that exceed IPC-620 Class 3 requirements for military/aerospace applications.Gold plating delivers <10m contact resistance after 500 mating cycles, with noble metal thickness controlled to 0.05 m tolerance.Precision-controlled 30.0µin (0.76µm) deposition ensures fretting corrosion resistance exceeding 200 cycles per EIA-364-26 test protocol.The UL94 V-0 certified housing materials self-extinguish within 10 seconds after flame removal per UL94 vertical burn test.Derated for continuous operation, 6A capacity maintains <30 C temperature rise at 85% of maximum rated current.The 0.318" (8.08mm) dimensional control ensures proper clearance for conformal coated PCBs while maintaining Z-axis stability during shock events.
Product Attributes
- Product Status: Obsolete
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: -
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 6A
- Backset Spacing: 0.318" (8.08mm)
- Features: -
