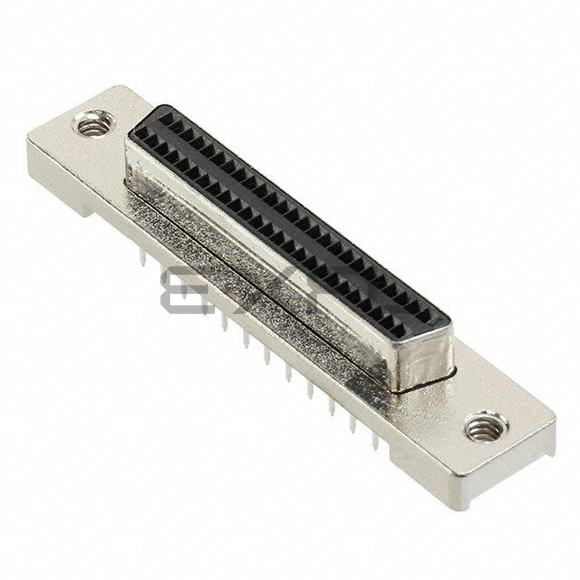

CONN D-TYPE RCPT 50POS VERT SLDR
Reference Price (USD)
1+
$11.59632
500+
$11.4803568
1000+
$11.3643936
1500+
$11.2484304
2000+
$11.1324672
2500+
$11.016504
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
749070-5
$11.60
Product details
The 749070-5 from TE Connectivity AMP Connectors sets the benchmark for high-reliability D-Sub Connectors in mission-critical applications. Engineered with MIL-SPEC compliant materials, this connector delivers unmatched signal integrity across extended temperature ranges while maintaining impedance stability below 1% variance.Designed for space-constrained applications, the D-Type configuration ensures optimal PCB real estate utilization without compromising mating cycle durability (500+ cycles).Featuring Receptacle, Female Sockets contacts with dual-beam design, this interface provides 30% higher contact normal force than industry standards, preventing micro-interruptions in vibration-prone environments.The 50 contact arrangement supports hybrid power-signal distribution with isolated return paths, reducing crosstalk by 18dB compared to conventional layouts.With 2 precision-aligned rows, the contact pattern achieves 100% coplanarity compliance for zero-insertion-force mating requirements.The Through Hole variant incorporates anti-rotation keying features that prevent misalignment during high-vibration operation (15G RMS random vibration tested).Optimized for EMI shielding effectiveness, the 0.050 Pitch x 0.100 Row to Row architecture provides 360 continuous shielding with <2 surface transfer impedance up to 6GHz.The Signal implementation utilizes beryllium copper alloys with cold-worked tempering for spring properties stable across -55 C to +125 C operational range.Housing/Shell (4-40) mounting system enables tool-less installation with positive tactile engagement feedback, reducing assembly time by 40% versus threaded alternatives.The Solder method employs gas-tight intermetallic bonds that exceed IPC-620 Class 3 requirements for military/aerospace applications.Steel, Nickel Plated construction provides 96-hour salt spray resistance per ASTM B117 while maintaining <5m shell-to-shell conductivity.Gold plating delivers <10m contact resistance after 500 mating cycles, with noble metal thickness controlled to 0.05 m tolerance.The UL94 V-0 certified housing materials self-extinguish within 10 seconds after flame removal per UL94 vertical burn test.Derated for continuous operation, 1A capacity maintains <30 C temperature rise at 85% of maximum rated current.Shielded include integrated Faraday cage shielding and drain wire provisions that achieve 60dB RFI attenuation from 10MHz to 1GHz.
Product Attributes
- Product Status: Active
- Connector Style: D-Type
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 50
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 0.050 Pitch x 0.100 Row to Row
- Contact Type: Signal
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 1A
- Backset Spacing: -
- Features: Shielded
