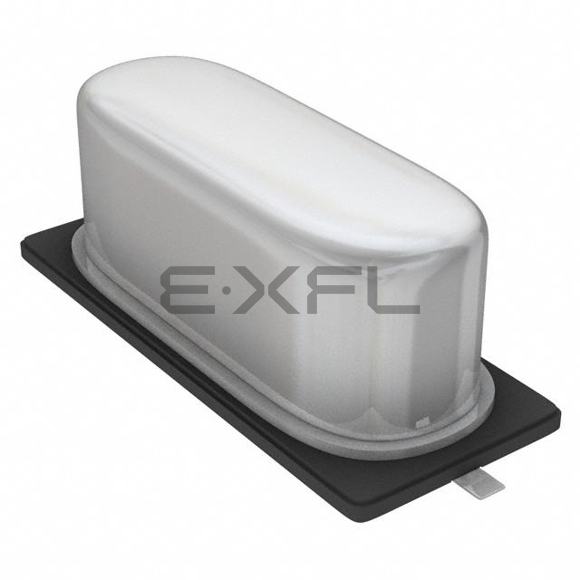

ABLS-20.000MHZ-R30-B4-T
Abracon LLC
ABLS-20.000MHZ-R30-B4-T
Abracon LLC
CRYSTAL 20.0000MHZ 18PF SMD
Reference Price (USD)
1+
$0.27000
500+
$0.2673
1000+
$0.2646
1500+
$0.2619
2000+
$0.2592
2500+
$0.2565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ABLS-20.000MHZ-R30-B4-T
$0.27
Product details
The ABLS-20.000MHZ-R30-B4-T by Abracon LLC delivers military-grade reliability for Crystals applications, engineered to exceed MIL-STD-883 specifications for shock, vibration, and thermal cycling. Its hardened design ensures mission-critical timing in defense systems ranging from encrypted communications to precision-guided munitions.This MHz Crystal oscillator incorporates ruggedized construction techniques that surpass commercial components in mechanical shock survival.Operating at 20 MHz, the device provides stable references for software-defined radios and electronic warfare systems.With ±50ppm stability, it maintains accuracy during rapid decompression events and high-G maneuvers.The ±30ppm tolerance meets stringent requirements for GPS-denied navigation and inertial measurement units.Configured with 18pF load capacitance, it compensates for cable effects in distributed military sensor networks.The 30 Ohms ESR remains stable despite extreme vibration profiles encountered in armored vehicle electronics.Utilizing Fundamental operation, it achieves the necessary EMI hardening for operation near high-power radar systems.Rated for -20°C ~ 70°C, the component performs reliably in desert, arctic, and tropical theater conditions.The Surface Mount design incorporates MIL-SPEC mounting provisions for vibration-resistant installation.Housed in a HC-49/US package, it meets hermetic sealing requirements for operation in chemically hostile environments.With 0.449" L x 0.185" W (11.40mm x 4.70mm) dimensions, the compact design enables integration into soldier-worn electronics and UAV avionics.The 0.165" (4.20mm) low profile accommodates strict form factor requirements in missile guidance systems.
Product Attributes
- Product Status: Active
- Type: MHz Crystal
- Frequency: 20 MHz
- Frequency Stability: ±50ppm
- Frequency Tolerance: ±30ppm
- Load Capacitance: 18pF
- ESR (Equivalent Series Resistance): 30 Ohms
- Operating Mode: Fundamental
- Operating Temperature: -20°C ~ 70°C
- Ratings: -
- Mounting Type: Surface Mount
- Package / Case: HC-49/US
- Size / Dimension: 0.449" L x 0.185" W (11.40mm x 4.70mm)
- Height - Seated (Max): 0.165" (4.20mm)
