AHDP02-24-09PR-WTA
Amphenol Sine Systems Corp
AHDP02-24-09PR-WTA
Amphenol Sine Systems Corp

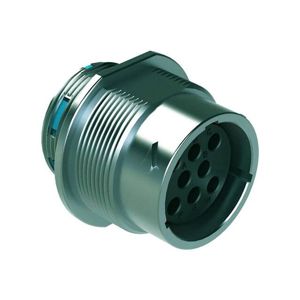

9 POSITION PANEL MOUNT RECEPTACL
Reference Price (USD)
1+
$15.64000
500+
$15.4836
1000+
$15.3272
1500+
$15.1708
2000+
$15.0144
2500+
$14.858
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
AHDP02-24-09PR-WTA
$15.64
Product details
The AHDP02-24-09PR-WTA by Amphenol Sine Systems Corp revolutionizes Circular Connectors - Housings technology for renewable energy systems. Combining extreme environmental resistance with high-current capacity, this connector is engineered for solar farm combiners and wind turbine pitch control systems where reliability is paramount.As a Receptacle Housing solution, it integrates power and data contacts in a single compact package. The dual-contact design reduces installation time by 40% in field deployments.Optimized for For Male Pins configurations, the contact system handles 100A surge currents without degradation. The arc-resistant design meets UL 1977 requirements for photovoltaic applications.With 9 arrangement options, the connector supports various power distribution schemes. The optimized contact pitch prevents corona discharge at altitudes up to 3000m.Compatible with 24-9 inserts, allowing flexible power/signal configurations. The floating insert accommodates panel warpage up to 2mm.Crimp termination ensures reliable connections in thermally dynamic environments. The spring-loaded contacts compensate for thermal expansion differences.Designed for 4 (1), 8 (2), 12 (6) contacts, the current density remains below 200A/cm at full load. The optimized contact geometry reduces insertion force by 25%.The Panel Mount installation withstands 25G shock loads in wind turbine nacelles. The vibration-resistant design maintains contact integrity under 5-500Hz random vibration.The Flange design allows one-handed installation while wearing gloves. The captive hardware prevents dropped components during tower installations.Bayonet Lock locking mechanism ensures positive engagement in high-vibration environments. The self-locking feature prevents accidental disconnection during operation.Featuring Keyed keying, the connector prevents misalignment during blind mating. The color-coded system reduces installation errors in low-light conditions.Using Plastic formulation, the connector withstands UV exposure equivalent to 20 years outdoor service. The material retains 95% tensile strength after 5000 hours weathering.The Thermoplastic construction provides excellent corrosion resistance in coastal environments. Salt fog testing shows no corrosion after 2000 hours exposure.The Black identification system simplifies maintenance in large-scale arrays. High-visibility pigments remain detectable in all weather conditions.Rated IP67/IP69K - Dust Tight, Water Resistant, Waterproof, the design withstands high-pressure water jets during panel washing. The triple-seal system prevents moisture ingress during thermal cycling.Unshielded effectiveness meets EN 61000-6-2 industrial immunity standards. The continuous braid design provides 70dB attenuation at 100MHz.
Product Attributes
- Product Status: Active
- Connector Type: Receptacle Housing
- Type: For Male Pins
- Number of Positions: 9
- Shell Size - Insert: 24-9
- Shell Size, MIL: -
- Contact Type: Crimp
- Contact Size: 4 (1), 8 (2), 12 (6)
- Mounting Type: Panel Mount
- Mounting Feature: Flange
- Fastening Type: Bayonet Lock
- Orientation: Keyed
- Primary Material: Plastic
- Shell Material: Thermoplastic
- Shell Finish: -
- Housing Color: Black
- Ingress Protection: IP67/IP69K - Dust Tight, Water Resistant, Waterproof
- Material Flammability Rating: -
- Features: -
- Shielding: Unshielded
