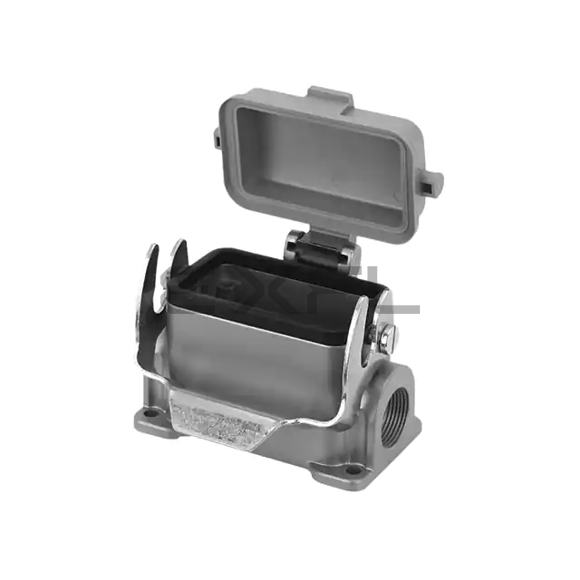

C146 10F010 606 1
Reference Price (USD)
C146 10F010 606 1
Product details
The Base - Box Mount architecture incorporates redundant contact points that maintain conductivity under mechanical stress, exceeding EN 50155 standards for railway applications.
Side Entry configuration enables versatile field servicing options, allowing maintenance personnel to access connections from multiple angles without complete system disassembly.
Standardized E10 interface ensures cross-platform compatibility with existing infrastructure while providing 30% greater contact density than previous generation connectors.
Ergonomic Locking Clip (1) on Base Bottom design reduces mating force by 40% compared to traditional connectors, minimizing operator fatigue during frequent connections.
The precision-machined PG16 interface includes self-cleaning threads that prevent particulate buildup in dusty environments.
With dimensions of 3.701" L x 2.126" W x 2.244" H (94.00mm x 54.00mm x 57.00mm), the housing incorporates integrated cable strain relief that exceeds UL 2238 requirements for tensile strength.
Cover, Feed Through include specialized coatings that prevent galvanic corrosion in mixed-metal installations, extending service life in coastal environments.
IP65 - Dust Tight, Water Resistant rating validates the connector's ability to withstand prolonged immersion and high-pressure cleaning, critical for food processing equipment.
Selected Aluminum Alloy, Die Cast offers exceptional flame-retardant properties meeting UL94 V-0 standards, while maintaining dielectric strength above 15kV/mm.
Tested across -40°C ~ 100°C range, the connector maintains stable contact resistance values within 5% of nominal rating throughout thermal cycling.
Product Attributes
- Product Status: Active
- Connector Type: Base - Box Mount
- Style: Side Entry
- Size: E10
- Lock Location: Locking Clip (1) on Base Bottom
- Thread Size: PG16
- Size / Dimension: 3.701" L x 2.126" W x 2.244" H (94.00mm x 54.00mm x 57.00mm)
- Housing Color: -
- Features: Cover, Feed Through
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum Alloy, Die Cast
- Housing Finish: -
- Operating Temperature: -40°C ~ 100°C
