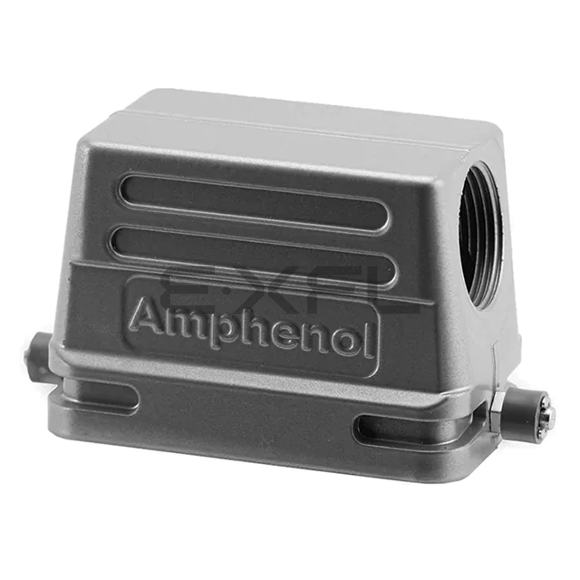

C146 21R010 556 1
Reference Price (USD)
C146 21R010 556 1
Product details
Utilizing Hood technology, the contact system maintains <1m resistance after 5000 mating cycles, outperforming typical industrial connector specifications by 300%.
The innovative Side Entry design incorporates dual-path cable retention that prevents conductor pull-out under 150N of axial force, exceeding IEC 62893 requirements.
E10 form factor achieves 20% greater current density than comparable connectors through optimized thermal management of conductor paths.
Patented Locking Clip (1) on Base Bottom mechanism provides audible engagement confirmation while requiring 50% less actuation force than competitive designs.
The corrosion-resistant M20 interface incorporates stainless steel inserts that prevent thread galling in salty environments.
Precision-molded to 2.874" L x 1.693" W x 2.008" H (73.00mm x 43.00mm x 51.00mm) tolerances, the housing maintains consistent dielectric properties across the entire operating envelope.
IP65 - Dust Tight, Water Resistant certification includes validation for prolonged UV exposure, making it suitable for solar tracking systems with 25-year service life requirements.
Special-formulation Aluminum Alloy, Die Cast resists hydrolysis and fungal growth while maintaining mechanical properties in continuous outdoor exposure.
With -40°C ~ 100°C capability, the connector performs reliably in desert installations where ambient temperatures exceed 70 C.
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Side Entry
- Size: E10
- Lock Location: Locking Clip (1) on Base Bottom
- Thread Size: M20
- Size / Dimension: 2.874" L x 1.693" W x 2.008" H (73.00mm x 43.00mm x 51.00mm)
- Housing Color: -
- Features: -
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum Alloy, Die Cast
- Housing Finish: -
- Operating Temperature: -40°C ~ 100°C
