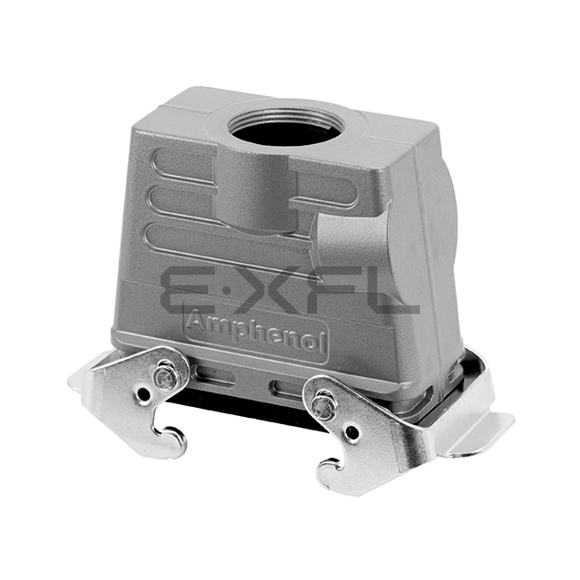

C146 21R016 802 1
Reference Price (USD)
C146 21R016 802 1
Product details
Utilizing Hood - Coupling technology, the contact system maintains <1m resistance after 5000 mating cycles, outperforming typical industrial connector specifications by 300%.
The innovative Bottom Entry design incorporates dual-path cable retention that prevents conductor pull-out under 150N of axial force, exceeding IEC 62893 requirements.
E16 form factor achieves 20% greater current density than comparable connectors through optimized thermal management of conductor paths.
Patented Locking Clip (2) on Hood Top mechanism provides audible engagement confirmation while requiring 50% less actuation force than competitive designs.
The corrosion-resistant M32 interface incorporates stainless steel inserts that prevent thread galling in salty environments.
Precision-molded to 3.681" L x 1.693" W x 2.441" H (93.50mm x 43.00mm x 62.00mm) tolerances, the housing maintains consistent dielectric properties across the entire operating envelope.
Cable to Cable include integrated voltage test points that allow maintenance verification without disassembly, reducing system downtime.
IP65 - Dust Tight, Water Resistant certification includes validation for prolonged UV exposure, making it suitable for solar tracking systems with 25-year service life requirements.
Special-formulation Aluminum Alloy, Die Cast resists hydrolysis and fungal growth while maintaining mechanical properties in continuous outdoor exposure.
With -40°C ~ 100°C capability, the connector performs reliably in desert installations where ambient temperatures exceed 70 C.
Product Attributes
- Product Status: Active
- Connector Type: Hood - Coupling
- Style: Bottom Entry
- Size: E16
- Lock Location: Locking Clip (2) on Hood Top
- Thread Size: M32
- Size / Dimension: 3.681" L x 1.693" W x 2.441" H (93.50mm x 43.00mm x 62.00mm)
- Housing Color: -
- Features: Cable to Cable
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum Alloy, Die Cast
- Housing Finish: -
- Operating Temperature: -40°C ~ 100°C
