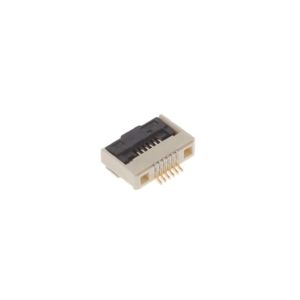

CF25101D0R0-05-NH
Cvilux USA

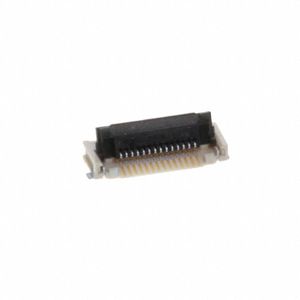

CF25101D0R0-05-NH
Cvilux USA
CF25 SERIES 0.50MM(.020") ZIF ON
Reference Price (USD)
1+
$0.36000
500+
$0.3564
1000+
$0.3528
1500+
$0.3492
2000+
$0.3456
2500+
$0.342
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
CF25101D0R0-05-NH
$0.36
Product details
The CF25101D0R0-05-NH by Cvilux USA revolutionizes FFC, FPC (Flat Flexible) Connectors applications through innovative contact technology, developed for harsh industrial environments. This robust solution combines military-grade durability with precision signal integrity for factory automation systems.Specialized for FFC, FPC implementations, the connector features wipe-clean surfaces for contaminant resistance. The sealed design meets IP67 standards when mated.Surface Mount, Right Angle installation method incorporates anti-rotation pegs. The solder tail design optimizes thermal transfer during reflow processes.The Contacts, Bottom configuration utilizes dual-fork contact geometry. The redundant contact system ensures fault-tolerant operation.With 10 available circuits, this connector supports parallel power distribution. The current-sharing design balances load across multiple paths.The 0.020" (0.50mm) contact spacing incorporates air-gap isolation for high-voltage applications. The insulated ribs prevent arc tracking at altitude.Solder method features gas-tight connections. The cold-welded joints prevent oxidation in corrosive atmospheres.Compatible with 0.30mm cable dimensions, the strain relief withstands 200N/cm pressure. The anti-abrasion guides prevent cable wear.The 0.087" (2.20mm) profile enables convection cooling in enclosed spaces. The thermally conductive housing dissipates 5W heat load.Incorporating Slide Lock mechanism, the connector achieves vibration resistance to 20G. The quarter-turn fastening system enables tool-less operation.The Straight interface design prevents fluid ingress. The hydrophobic surface treatment repels oils and coolants.Fabricated from Phosphor Bronze, the contacts maintain elasticity at cryogenic temperatures. The work-hardened alloy resists stress relaxation.Tin coating provides >1000 mating cycles. The selective plating process optimizes precious metal usage.The Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free housing withstands chemical exposure. The UV-stabilized formulation prevents degradation in outdoor applications.Using Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free components, the actuator operates reliably at -55 C. The anti-static formulation prevents particulate attraction.Solder Retention, Zero Insertion Force (ZIF) include integrated circuit identification. The color-coded system simplifies field maintenance procedures.Rated for 50V working voltage, the connector exceeds IEC 60512-4 requirements. The triple-insulation design provides reinforced protection.Performance-validated across -40°C ~ 105°C range, the materials maintain mechanical properties. The thermal expansion-matched design prevents stress buildup.Compliant with UL94 V-0 standards, the materials produce minimal toxic fumes. The ceramic-filled compound resists dripping in vertical burn tests.
Product Attributes
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 10
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.087" (2.20mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Actuator Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
