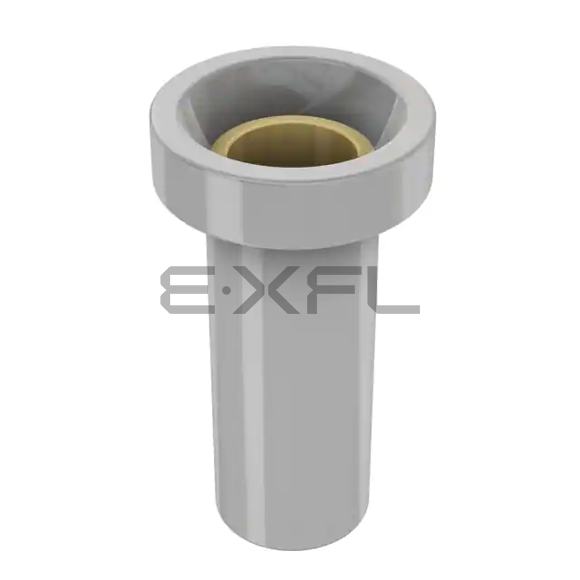

D01-9790401
Harwin Inc.
D01-9790401
Harwin Inc.
CONN PIN RCPT .016-.020 SOLDER
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
D01-9790401
$0.00
Product details
Harwin Inc.'s D01-9790401 sets new standards in Terminals - PC Pin Receptacles, Socket Connectors technology, optimized for industrial automation systems demanding rugged reliability. This socket connector incorporates innovative features that address EMI/RFI challenges while providing exceptional current density. The D01-9790401 is particularly effective in robotic control systems and power distribution modules where consistent contact resistance is paramount.Available in Standard Tail variants, this series supports flexible manufacturing processes from wave soldering to press-fit installations.Solder technology in this connector delivers superior mechanical stability for high-stress industrial environments.The 0.297" (7.54mm) dimensional configuration enables optimal PCB real estate utilization in control panel designs.Engineered to accommodate 0.016" ~ 0.020" (0.41mm ~ 0.51mm) pin sizes, facilitating interoperability with legacy equipment.Precision 0.043" (1.09mm) tolerances ensure consistent mating force throughout the product lifecycle.0.039" ~ 0.043" (0.99mm ~ 1.09mm) mounting compatibility allows for secure fastening in vibration-prone applications.The 0.057" (1.45mm) flange design provides mechanical reinforcement for heavy-duty connector applications.The 0.023" (0.59mm) tail specification supports high-current applications up to 5A continuous load.With 0.124" (3.15mm) socket penetration, this connector maintains stable connections in high-G force scenarios.Beryllium Copper construction guarantees excellent conductivity and long-term elastic memory.Specialized Gold surface treatment prevents fretting corrosion in humid operating conditions.Controlled 3.94µin (0.10µm) deposition ensures reliable performance in chemically aggressive environments.
Product Attributes
- Product Status: Active
- Tail Type: Standard Tail
- Termination: Solder
- Length - Overall: 0.297" (7.54mm)
- Accepts Pin Diameter: 0.016" ~ 0.020" (0.41mm ~ 0.51mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: 0.043" (1.09mm)
- Mounting Hole Diameter: 0.039" ~ 0.043" (0.99mm ~ 1.09mm)
- Flange Diameter: 0.057" (1.45mm)
- Tail Diameter: 0.023" (0.59mm)
- Socket Depth: 0.124" (3.15mm)
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Contact Finish Thickness: 3.94µin (0.10µm)
