Harwin Inc.
D01-9792001
Harwin Inc.

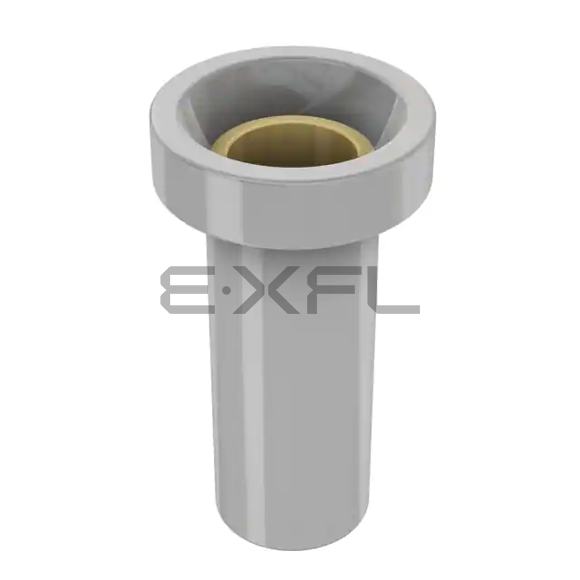

CONN PIN RCPT .016-.020 SOLDER
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
D01-9792001
$0.00
Product details
The D01-9792001 from Harwin Inc. represents a premium solution in Terminals - PC Pin Receptacles, Socket Connectors, engineered for high-density circuit applications requiring precision connectivity. This socket connector delivers exceptional signal integrity while maintaining minimal insertion loss across extended operational cycles. With its advanced contact architecture, the D01-9792001 ensures reliable performance in 5G infrastructure and aerospace electronics where vibration resistance is critical.Featuring Standard Tail termination options, this connector accommodates diverse PCB assembly requirements from surface mount to through-hole configurations.The Solder method provides robust mechanical attachment with excellent electrical continuity, particularly suited for high-vibration environments.With a compact 0.297" (7.54mm) profile, this component enables space-constrained designs without compromising current-carrying capacity.Precision-machined to accept pins ranging 0.016" ~ 0.020" (0.41mm ~ 0.51mm), ensuring broad compatibility with industry-standard headers.The 0.043" (1.09mm) aperture maintains optimal contact pressure for reliable mating cycles exceeding 10,000 insertions.Designed for 0.039" ~ 0.043" (0.99mm ~ 1.09mm) board cutouts, facilitating secure mechanical fixation in multilayer PCBs.The 0.057" (1.45mm) stabilization flange prevents rotation during soldering processes while enhancing thermal dissipation.The 0.023" (0.59mm) tail configuration supports automated placement equipment for high-volume manufacturing.Optimized 0.124" (3.15mm) provides sufficient lead engagement for shock-resistant connections in mobile applications.Constructed with Beryllium Copper contacts, delivering superior spring properties and corrosion resistance.Gold plating ensures low contact resistance and enhanced durability against environmental contaminants.Precision-controlled 3.94µin (0.10µm) coating guarantees consistent performance across temperature extremes.
Product Attributes
- Product Status: Active
- Tail Type: Standard Tail
- Termination: Solder
- Length - Overall: 0.297" (7.54mm)
- Accepts Pin Diameter: 0.016" ~ 0.020" (0.41mm ~ 0.51mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: 0.043" (1.09mm)
- Mounting Hole Diameter: 0.039" ~ 0.043" (0.99mm ~ 1.09mm)
- Flange Diameter: 0.057" (1.45mm)
- Tail Diameter: 0.023" (0.59mm)
- Socket Depth: 0.124" (3.15mm)
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Contact Finish Thickness: 3.94µin (0.10µm)
